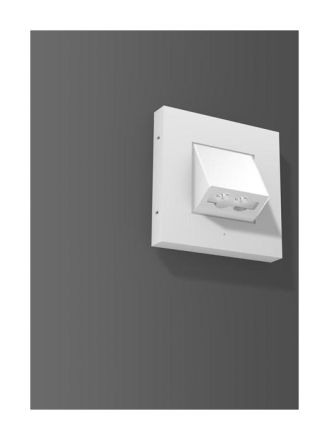

RZB 672304.002.1.89 Centryxx IP 4W 79 LED wall light

RZB 672304.002.1.89 Centryxx IP 4W 79 LED wall light

In stock

SKU: 532930

Price on request

€255.23

€0

Overview

Protection class IP 65, dust-tight and protected against water jets from all directions. Extremely flat design to match modern architecture. Large luminaire spacing for escape route lighting thanks to special lenses. Very low maintenance costs thanks to automatic self-test. Best thermal management thanks to die-cast aluminum fitting. Die-cast aluminum bracket, powder-coated. Plastic cover (polycarbonate). LED lamp insert with clear plastic lenses for area lighting. Can be pivoted vertically. Control gear built in. With AC-Control monitoring module for Luxifair central battery systems. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	6500 K
Length:	79 mm
Width:	198 mm
Height/Depth:	198 mm
Max. System performance:	7.80 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	350 lm
Luminous flux in standby mode:	350 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting
Housing material:	aluminum
Suitable for type of marking:	other
Feed:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	32 to 35 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Power factor:	0.56
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
