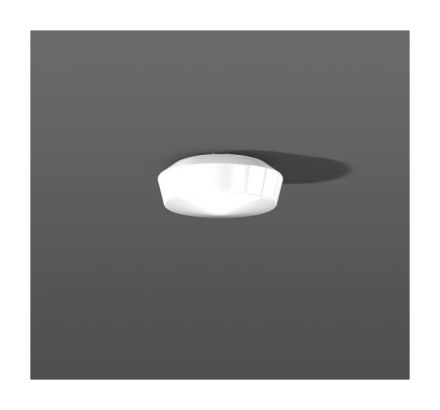

RZB 10120.002 DKN Classic A60 60W E27 D: 250 H: 105 Wall / ceiling light

RZB 10120.002 DKN Classic A60 60W E27 D: 250 H: 105 Wall / ceiling light

In stock

SKU: 526067

Price on request

€27.99

€0

Overview

Thanks to the DKN fitting (pressure-tilt glass only), the light can be opened without tools when changing the lamp. Fitting not visible. Easy to install. Problem-free application. Timeless design. Bracket: galvanized metal. Cover attached using tilt springs (DKN system). Cover: opal glass, satin finish, hand-blown. Energy efficiency class: A++, E

Property	Value
Max. System power:	60 W
Suitable for number of lamps:	1
Height/depth:	105 mm
Protection rating (IP):	IP40
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	white
Material of the housing:	Steel
Impact resistance:	IK02
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	250 mm
Type of voltage:	AC/DC
With motion detector:	no
Beam angle:	open beam/diffuse
Light source:	Incandescent lamp
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	E27
Connection type:	Plug-in terminal
With operating device:	no
Cover material:	Opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	60 W
Power factor:	1
Type of Wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABDKN Classic A60 60W E27 D: 250 H: 105

Manufacturer

HAN10120.002

GTIN4010319018142

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Outer diameter250 mm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power60W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth105 mm

Power factor1

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLight bulb

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Max. system performance60W

With operating deviceNo

With motion detectorNo

With light sensorNo

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialSteel
