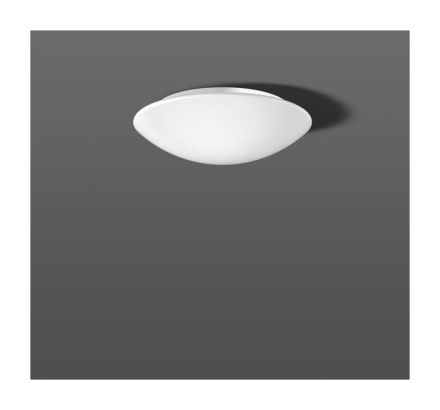

RZB 211071.002 Flat Basic A60 3x60W E27 D500 H150 wall / ceiling light

RZB 211071.002 Flat Basic A60 3x60W E27 D500 H150 wall / ceiling light

In stock

SKU: 526132

Price on request

€226.21

€0

Overview

Very extensive range of ceiling and wall lights for indoor use. Hand-blown three-layer opal glass (triplex glass), satin matt. The triplex glass ensures particularly homogeneous, soft and glare-free light. In numerous diameters from 200 to 630 mm. Plastic bracket. Cover attached with a bayonet lock. Cover made of opal glass, satin matt, hand-blown. IP43 ceiling mounting, IP44 wall mounting. Energy efficiency class A++, E

Property	Value
Max. System power:	138 W
Suitable for number of bulbs:	3
Height/depth:	150 mm
Protection rating (IP):	IP43
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	white
Material of the housing:	Plastic
Impact resistance:	IK03
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	500 mm
Type of voltage:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
Light source:	Incandescent lamp
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	E27
Connection type:	Screw terminal
With control gear:	no
Cover material:	Opal glass
Light distributor:	without
Without Dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	138 W
Power factor:	1
Type of wiring:	suitable for Through wiring
Conductor cross-section:	6 mm²

Characteristics

HABFlat Basic A60 3x60W E27 D500 H150

Manufacturer

HAN211071.002

GTIN4010319283830

Covering the luminaire with thermal insulation material possibleYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter500 mm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power138W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth150 mm

Power factor1

Conductor cross-section6 mm²

Luminaire with limited surface temperature D-markNo

LampsLight bulb

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Max. system performance138W

With operating deviceNo

With motion detectorNo

With light sensorNo

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Impact resistanceIK03

IP protection)IP43

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

Cover materialGlass opal

Housing materialPlastic
