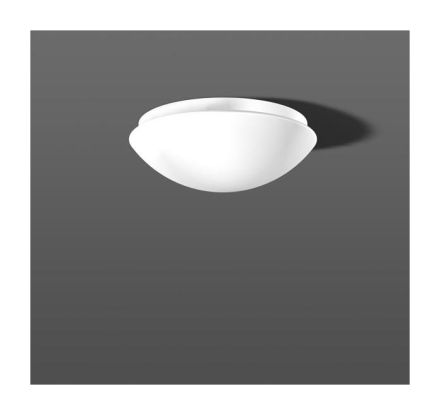

RZB 221106.002 Flat A60 3x40W E27 D420 H150 PMMA wall / ceiling light

RZB 221106.002 Flat A60 3x40W E27 D420 H150 PMMA wall / ceiling light

In stock

SKU: 526577

Price on request

€108.38

€0

Overview

Light for indoor and outdoor use. PMMA diffuser: stable, scratch-resistant (replacement for glass). UV-resistant (lightfast, no yellowing). Absolutely weatherproof. PC diffuser: hard, rigid, shatter-proof, extremely impact-resistant. UV-stabilized. Optionally with integrated HF motion detector. LED service life 50,000 hours (L70, B10). Color tolerance: triple MacAdam (3 SDCM). White plastic bracket. Cover attached using a spring system. Opal plastic cover (PMMA). IP43 ceiling mounting, IP44 wall mounting. Energy efficiency class A++, E

Property	Value
Max. System power:	55 W
Suitable for number of bulbs:	3
Height/depth:	150 mm
Protection rating (IP):	IP43
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	white
Material of the housing:	Plastic
Impact resistance:	IK02
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	420 mm
Type of voltage:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
Light source:	Incandescent lamp
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	E27
Connection type:	Screw terminal
With control gear:	no
Cover material:	Opal plastic
Light distributor:	without
Without Dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	55 W
Power factor:	1
Type of wiring:	suitable for Through wiring
Conductor cross-section:	6 mm²

Characteristics

HABA60 3x40W E27 D420 H150 PMMA

Manufacturer

HAN221106.002

GTIN4010319583817

Covering the luminaire with thermal insulation material possibleYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter420 mm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power55W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth150 mm

Power factor1

Conductor cross-section6 mm²

Luminaire with limited surface temperature D-markNo

LampsLight bulb

Light emissionDirect/indirect

Light distributorWithout

Light distributionSymmetrical

Max. system performance55W

With operating deviceNo

With motion detectorNo

With light sensorNo

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Impact resistanceIK02

IP protection)IP43

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialPlastic

RZB 221106.002 Flat A60 3x40W E27 D420 H150 PMMA wall / ceiling light

Price on request

€108.38

€0

Into a basketIn the basketGo
