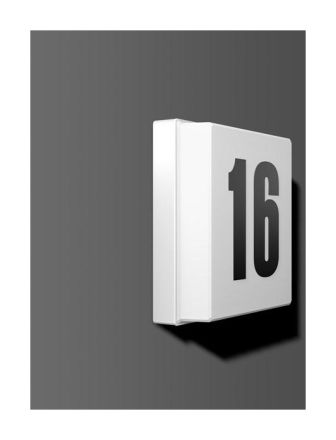

RZB 221167.002.25 5W 210lm 226x226x70 m.DS white LED house number light LB19

RZB 221167.002.25 5W 210lm 226x226x70 m.DS white LED house number light LB19

In stock

SKU: 529262

Price on request

€90.15

€0

Overview

Use of smart, cost-effective LED modules for mains voltage with high LED system light output for energy-saving operation. Optional positive or negative display of the house number. As a version without twilight switch, e.g. also suitable for lighting passageways. Robust and durable materials for the housing and operating equipment enable many years of trouble-free operation. Plastic bracket. Cover attached using a spring system. Cover made of opal, satin-matt plastic. Light source (mains voltage LED) included in delivery. Includes built-in twilight switch, fixed setting, ON approx. 5 lux, OFF approx. 40 lux. Order labeling separately! Energy efficiency class A+

Property	Value
Max. System power:	4 W
Rated luminous flux according to IEC 62722-2-1:	230 lm
Suitable for number of lamps:	1
Length:	226 mm
Width:	226 mm
Height/depth:	70 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	no
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	no
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	yes
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent from the operating device:	no
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	4 W
Luminaire luminous efficacy:	58 lm/W
Power factor:	0.98
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HAB5W 210lm 226x226x70 m.DS white

Manufacturer

HAN221167.002.25

GTIN4051859141563

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1230lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Width226 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for lamp power4W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth70 mm

Power factor0.98

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy58lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length226 mm

Max. system performance4W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage230V

Without dimming functionYes

Number of poles3

Impact resistanceIK06

IP protection)IP44

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
