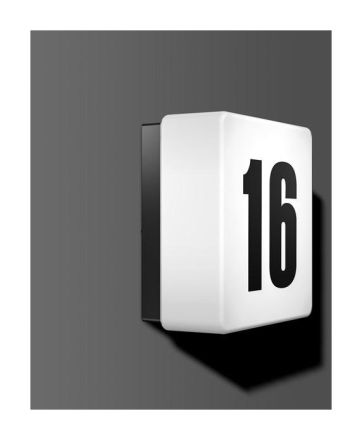

HAB5.5W 4000K Insulation sch.
HAN251050.003.1.25
GTIN4051859172390
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated luminous flux according to IEC 62722-2-1250lm
Rated ambient temperature according to IEC62722-2-1-20 to 35 °C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1Yes
Width240 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for lamp power4W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorBlack
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth110 mm
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy63lm/W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorWithout
Light distributionAsymmetrical
Length240 mm
Max. system performance4W
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorYes
With air slotsNo
Nominal voltage230V
Without dimming functionYes
Number of poles3
Impact resistanceIK02
IP protection)IP44
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
