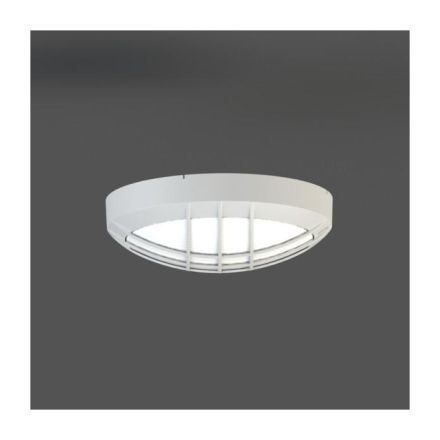

RZB 581640.002 Rounded Maxi QA60 2x57W E wall / ceiling light

RZB 581640.002 Rounded Maxi QA60 2x57W E wall / ceiling light

In stock

SKU: 532300

Price on request

€186.10

€0

Overview

Elegant appearance without visible screws thanks to bayonet lock with snap lock (optional) as theft protection. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. Seawater-resistant coating. Replaceable LED module. Second cable entry for mains forwarding. Housing made of corrosion-resistant die-cast aluminum, powder-coated, robust design. Fastening points outside the lamp compartment, safe installation through consistent error avoidance. Fast installation: tolerance compensation for drill holes. Generous cable management space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser attachment using mounting fixation. Can also be fitted with lamps for E27 sockets. Versions for escape route lighting with central battery feed available. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Protective grille with diffuser ball cap made of opal glass, satin finish. With mounting fixation. Screwless installation of the diffuser via bayonet lock with snap lock. Fastening outside the sealed area with bore tolerance compensation. Mains connection 2x 3x 1.5 mm. Energy efficiency class A++, E

Property	Value
Max. System power:	92 W
Suitable for number of lamps:	2
Height/depth:	127 mm
Protection rating (IP):	IP65
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	0 to 250 V
Housing color:	white
Material of the housing:	Aluminium
Impact resistance:	IK07
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	400 mm
Type of voltage:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
Light source:	HV halogen lamp
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Socket:	E27
Connection type:	Plug-in terminal
With operating device:	no
Cover material:	Opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	yes
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	92 W
Power factor:	1
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross section:	1.50 mm²

Characteristics

HABRounded Maxi QA60 2x57W E

Manufacturer

HAN581640.002

GTIN4051859227373

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Outer diameter400 mm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationYes

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power92W

Suitable for number of lamps2

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth127 mm

Power factor1

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsHV halogen lamp

Light emissionDirect

Light distributorWithout

Light distributionSymmetrical

Max. system performance92W

With operating deviceNo

With motion detectorNo

With light sensorNo

With air slotsNo

Nominal voltage0 to 250V

Without dimming functionYes

Number of poles3

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialAluminum
