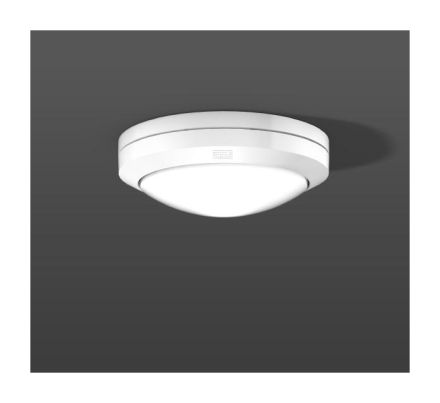

RZB 582001.002 Rounded Midi QA60 57W E27 wall / ceiling light

In stock
SKU: 532318
€114.44
Into a basketIn the basketGo

Overview

Elegant appearance without visible screws thanks to bayonet lock with snap lock (optional) as theft protection. LED: Use of smart, cost-effective LED modules for mains voltage with high system light output for energy-saving operation. Seawater-resistant coating. Replaceable LED module. Second cable entry for mains forwarding. Housing made of corrosion-resistant die-cast aluminum, powder-coated, robust design. Diaphragm valve for pressure equalization and prevention of condensation. Fastening points outside the lamp compartment, safe installation through consistent error avoidance. Fast installation: tolerance compensation for drill holes. Generous cable management space allows wall outlet even in the middle of the luminaire. Electrical connection via plug-in terminals. Diffuser attachment using mounting fixation. Huge variety of variants: 24 possible designs per configuration, based on two variants: crystal glass, satin matt or impact-resistant, opal plastic (PC). Three standard colors. Four housing variants: flat cover or spherical cap, half shell, protective basket. Versions for escape route lighting with central battery feed available. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Diffuser ball cap made of plastic (polycarbonate), opal. With mounting fixation. Screw-free installation of the diffuser via bayonet lock with snap lock. Fastening outside the sealed area with hole tolerance compensation. Mains connection 2x 3x 1.5 mm. Energy efficiency class A++, E

Property Value
Max. System power: 57 W
Suitable for number of bulbs: 1
Height/depth: 91 mm
Protection rating (IP): IP66
Protection class: I
Luminaire with limited surface temperature 'D-mark': no
Nominal voltage: 0 to 250 V
Housing color: white
Material of the housing: Aluminium
Impact resistance: IK10
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Outer diameter: 268 mm
Type of voltage: AC/DC
With motion detector: no
Beam angle: extremely wide beam >80°
Light source: HV halogen lamp
Rated ambient temperature according to IEC62722-2-1: -20 to 45 °C
Socket: E27
Connection type: Plug-in terminal
With operating device: no
Cover material: Opal plastic
Light distributor: without
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: not required
Suitable for recessed mounting: no
Suitable for computer workstations in accordance with EN 12464-1: yes
Suitable for light strip configuration: no
Suitable for pendant suspension: no
Suitable for surface mounting: yes
Suitable for emergency lighting: yes
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: yes
DMX dimming: no
DSI dimming: no
With air slots: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: yes
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Protection class (NEMA): other
Glow wire test according to IEC 60695-2-11: 850 °C - 30 s
Suitable for lamp power: 57 W
Power factor: 1
Type of Wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 1.50 mm²

Characteristics

HABRounded Midi QA60 57W E27
ManufacturerRZB
HAN582001.002
GTIN4051859217336
Covering the luminaire with thermal insulation material possibleYes
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Outer diameter268 mm
Rated ambient temperature according to IEC62722-2-1-20 to 45 °C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1Yes
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationYes
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for lamp power57W
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingYes
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth91 mm
Power factor1
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
LampsHV halogen lamp
Light emissionDirect
Light distributorWithout
Light distributionSymmetrical
Max. system performance57W
With operating deviceNo
With motion detectorNo
With light sensorNo
With air slotsNo
Nominal voltage0 to 250V
Without dimming functionYes
Number of poles3
Impact resistanceIK10
IP protection)IP66
Protection class (NEMA)Other
Protection classI
Voltage typeAC/DC
Cover materialPlastic opal
Housing materialAluminum
