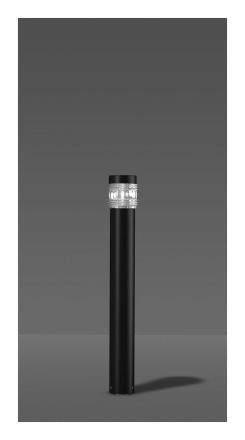

RZB 611887.0031 QA60 57W E27 D: 140 H: 1000 anthracite bollard light

In stock
SKU: 527024
€284.26
Into a basketIn the basketGo

Overview

Classic bollard light with an innovative housing concept and high-quality LED optics. Bollard standpipe ø 115 mm made of corrosion-resistant, powder-coated aluminum with a fully enclosed stainless steel mounting base. Corrosion-free lamp insert made of dual compound injection molding with integrated sealing elastomer. With diaphragm valve as standard to prevent condensation. Seawater-resistant coating. Hand-blown clear lamp glass in a belt lens shape. A light guide rod made of highly transparent plastic (PMMA) with a lasered optical structure redirects the light horizontally and thus ensures even illumination and optimized light distribution on the ground. The robust stainless steel mounting base ensures a secure stand. Elongated holes in the base for subsequent, easy alignment of the lamp. Connection box on the base max. 2 x 3 x 2.5 mm² for through wiring.

Property Value
Cover material: Transparent glass
Housing color: anthracite
Impact resistance: IK02
Protection class: I
Light source: HV halogen lamp
Nominal voltage: 0 to 250 V
Suitable for number of bulbs: 1
Diameter: 140 mm
Socket: E27
Material of the housing: Aluminium
Protection class (IP): IP65
Type of light: Bollard light
Operating device: not required
With operating device: no
With motion detector: no
With light sensor: no
Voltage type: AC/DC
With base plate: no
Surface: powder-coated
Light distributor: refractor lens
Protection class (NEMA): other
Suitable for lamp power: 57 W
Max. system power: 57 W
Power factor: 1
Height/depth: 1000 mm
Type of wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 2.50 mm²
Connection type: Plug-in terminal

Characteristics

With base plateNo
HABQA60 57W E27 D: 140 H: 1000 anthracite
ManufacturerRZB
HAN611887.0031
GTIN4051859074397
Connection typePlug-in terminal
Type of lampBollard light
Type of wiringSuitable for through wiring
Operating deviceNot required
Diameter140 mm
VersionE27
Suitable for lamp power57W
Suitable for number of lamps1
Housing colorAnthracite
Height/Depth1000 mm
Power factor1
Conductor cross-section2.50 mm²
LampsHV halogen lamp
Light distributorRefractor lens
Max. system performance57W
With operating deviceNo
With motion detectorNo
With light sensorNo
Nominal voltage0 to 250V
SurfacePowder coated
Number of poles3
Impact resistanceIK02
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC/DC
Cover materialGlass transparent
Housing materialAluminum
