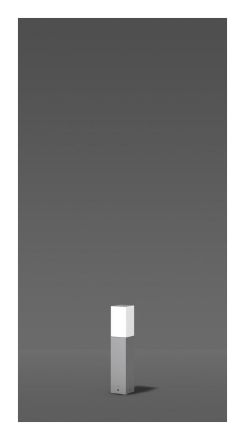

RZB 611905.004 10W 3000K 120x120x600 LED pedestal light

RZB 611905.004 10W 3000K 120x120x600 LED pedestal light

In stock

SKU: 528773

Price on request

€398.22

€0

Overview

Light and shadow in a cubic design language. The innovative housing concept protects the light source and operating devices from all weather influences. A sophisticated ventilation system prevents condensation. Seawater-resistant coating. The highly efficient LED solution saves energy effectively and for a long time while providing balanced brightness. Version with sockets on request. Bollard standpipe 120 mm x 120 mm made of corrosion-resistant aluminum for outdoor use, powder-coated. With fully enclosed stainless steel mounting base. Corrosion-free luminaire insert made of dual compound injection molding with integrated sealing elastomer. Cover made of opal glass, satin matt, hand-blown. Operating device installed. With diaphragm valve as standard to prevent condensation. Junction box on the base for connecting max. 2x 3x 2.5 mm as through-wiring. Energy efficiency class A++

Property	Value
Cover material:	Opal glass
Housing color:	Silver
Impact resistance:	IK02
With light source:	yes
Protection class:	I
Light source:	LED not replaceable
Nominal voltage:	176 to 264 V
Suitable for number of bulbs:	1
Width:	120 mm
Socket:	without
Material of the housing:	Aluminium
Protection class (IP):	IP65
Type of luminaire:	Bollard light
Operating device:	LED operating device, current-controlled
Rated luminous flux according to IEC 62722-2-1:	980 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Light color:	white
With operating device:	yes
With motion detector:	no
With light sensor:	no
Voltage type:	AC/DC
With base plate:	no
Surface:	powder-coated
LED nominal current at constant current:	38 to 57 mA
Light distributor:	without
Protection class (NEMA):	other
Suitable for lamp power:	10 W
Max. System power:	10 W
Power factor:	0.54
Height/depth:	600 mm
Length:	120 mm
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

With base plateNo

HAB10W 3000K 120x120x600

Manufacturer

HAN611905.004

GTIN4051859112648

Connection typePlug-in terminal

Type of lampBollard light

Type of wiringSuitable for through wiring

Rated luminous flux according to IEC 62722-2-1980lm

Operating deviceLED control gear current controlled

Width120 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power10W

Suitable for number of lamps1

Housing colorSilver

Height/Depth600 mm

LED nominal current at constant current38 to 57 mA

Power factor0.54

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Length120 mm

Max. system performance10W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage176 to 264 V

SurfacePowder coated

Number of poles3

Impact resistanceIK02

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialAluminum
