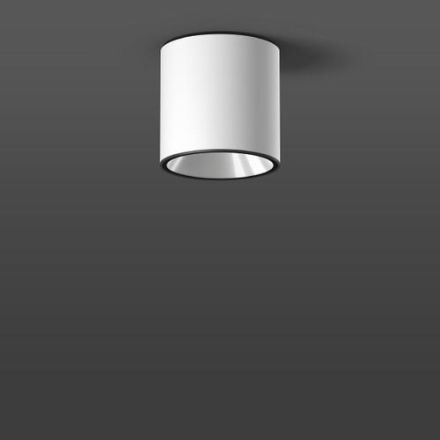

RZB 931196.002.2.76 Andho 15W 1800lm 827 ws DALI LED ceiling light

RZB 931196.002.2.76 Andho 15W 1800lm 827 ws DALI LED ceiling light

In stock

SKU: 836328

Price on request

€354.43

€0

Overview

High-quality surface-mounted downlight for indoor and outdoor use. Housing made of corrosion-resistant die-cast aluminum, seawater-resistant powder-coated. With diaphragm valve as standard to prevent condensation. Cover made of clear toughened safety glass (ESG). Rotationally symmetrical reflector made of anti-reflective MIRO-SILVER®. Easy installation thanks to separate ceiling fitting and plug connection. 5-pin double terminal for through-wiring.

Property	Value
Max. System power:	15 W
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP65
Outer diameter:	154 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Height/depth:	157 mm
With motion detector:	no
Color temperature:	2700 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for lamp power:	15 W
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device current controlled
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	other
Suitable for number of bulbs:	1
Luminous flux:	1800 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	62 to 68 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming ung DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.20
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	120 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM2

Characteristics

Total harmonic distortion (THD)0.20

HABAndho 15W 1800lm 827 ws DALI

Manufacturer

HAN931196.002.2.76

GTIN4051859677864

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Outer diameter154 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM2

Color temperature2700K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power15W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth157 mm

LED nominal current at constant current62 to 68 mA

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1800lm

Light distributorReflector

Light distributionSymmetrical

Max. system performance15W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles5

ReflectorOther

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
