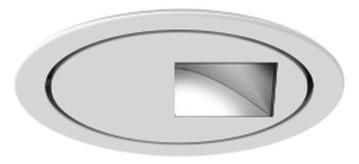

Siteco 51DK11B72WN21 LunMnRd WW gl 2120lm 940 0/1 3p ws LED recessed ceiling spotlight

Siteco 51DK11B72WN21 LunMnRd WW gl 2120lm 940 0/1 3p ws LED recessed ceiling spotlight

In stock

SKU: 888533

Price on request

€499.10

€0

Overview

Lunis 11 mini round, downlight, light control with wallwasher, made of highly reflective aluminum, high-gloss, light emission: direct beam, LED rated luminous flux: 2,120lm, light color: 940, ballast: electronic ballast, with terminal, 3-pin, mains connection: 220..230V, AC/DC, 0/50..60Hz, LED module, luminaire module, made of aluminum, high-gloss, white, diameter: 176mm, clamping range: 1..40mm, mounting ring, made of plastic, traffic white (RAL 9016), protection type (total): IP20, protection class (total): SK II (protective insulation), test mark: permissible ambient temperature for indoor rooms: 0..+35°C

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	2120.00 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	176.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	150.00 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	148 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 230 V
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Operating device:	EVG
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Luminous flux:	2120.00 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC/DC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for Pedestal/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Rated ambient temperature according to IEC62722-2-1:	0 to 35 °C
Connection type:	other
Luminaire luminous efficacy:	75 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Colour consistency (McAdam ellipse):	SDCM3

Characteristics

HABLunMnRd WW gl 2120lm 940 0/1 3p ws

Manufacturer

HAN51DK11B72WN21

GTIN4058352132302

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Outer diameter176.00 mm

Rated luminous flux according to IEC 62722-2-12120.00lm

Rated ambient temperature according to IEC62722-2-10 to 35 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth150.00 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth148 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy75lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2120.00lm

Light distributionAsymmetrical

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 230 V

Brushed surfaceNo

Without dimming functionYes

ReflectorHigh gloss

IP protection)IP20

Protection classII

Voltage typeAC/DC

Housing materialAluminum
