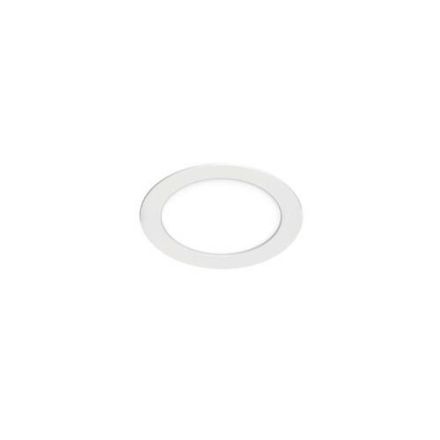

Siteco 51DR107DGBA Lun41flat D:150mm 1360lm 830/840 0/1 LED recessed ceiling spotlight

Siteco 51DR107DGBA Lun41flat D:150mm 1360lm 830/840 0/1 LED recessed ceiling spotlight

In stock

SKU: 889925

Price on request

€48.30

€0

Overview

Lunis 41, flat, downlight, light output: direct beam, LED rated luminous flux: 1,360lm, light color: 830/840, ballast: electronic ballast, mains connection: 230V, AC, 50/60Hz, housing, round, made of aluminum, painted, traffic white (RAL 9016), diameter: 170mm, protection rating (overall): IP20, protection class (overall): SK I (protective earthing), test mark: permissible ambient temperature for indoor rooms: -10..+40°C

Property	Value
Max. System power:	15 W
Rated luminous flux according to IEC 62722-2-1:	1250.00 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	170.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	yes
Height/depth:	19 mm
With motion detector:	no
Color temperature:	3000 to 4000 K
Nominal voltage:	230 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Operating device:	EVG
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Luminous flux:	1250.00 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	painted
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Rated service life L70/B50 at 25 °C:	30000.00 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Luminaire luminous efficacy:	83 lm/W
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

HABLun41flat D:150mm 1360lm 830/840 0/1

Manufacturer

HAN51DR107DGBA

GTIN4058352509920

Covering the luminaire with thermal insulation material possibleNo

Outer diameter170.00 mm

Rated lifetime L70/B50 at 25 °C30000.00h

Rated luminous flux according to IEC 62722-2-11250.00lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 4000 K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth19 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy83lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1250.00lm

Max. system performance15W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

SurfacePainted

Brushed surfaceNo

Without dimming functionYes

ReflectorWithout

IP protection)IP20

Protection classII

Voltage typeAC

Housing materialAluminum
