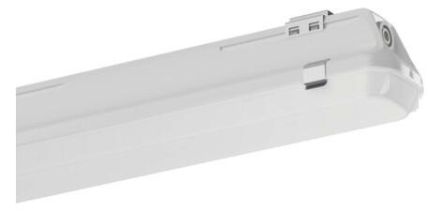

HABMon22 diff 8090lm 840 DA2 PMMA
HAN51FB10DP480B
GTIN4058352520024
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated lifetime L80/B10 at 25 °C50000.00h
Rated luminous flux according to IEC 62722-2-18090.00lm
Rated ambient temperature according to IEC62722-2-1-25 to 35 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width90.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorGray
Height/Depth88 mm
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy149lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length1590.00 mm
Max. system performance54W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Impact resistanceIK04
IP protection)IP66
Protection classI
Voltage typeAC
Housing materialPlastic
