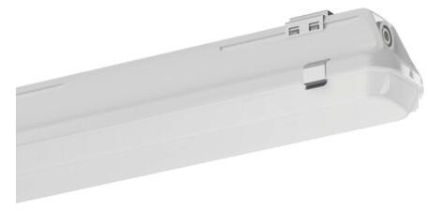

Siteco 51FB207P460B005 Mon22 diff 5400lm 840 5x2.5² PC LED damp-proof luminaire

In stock
SKU: 959502
€224.25
Into a basketIn the basketGo

Overview

Damp-proof luminaire IP66 4000K ON/OFF PC 5,400 LED Monsun 21

Property Value
Max. System power: 38 W
Rated luminous flux according to IEC 62722-2-1: 5400.00 lm
Length: 1590.00 mm
Width: 90.00 mm
Height/depth: 88 mm
Protection rating (IP): IP66
Protection class: I
Luminaire with limited surface temperature 'D-mark': yes
Nominal voltage: 220 to 240 V
Housing color: gray
Housing material: plastic
Color temperature: 4000 K
Impact resistance: IK08
Color rendering index CRI: 80-89
Suitable for ceiling mounting: yes
Suitable for wall mounting: yes
Voltage type: AC
With motion detector: no
Beam angle: free beam/diffuse
With light source: yes
Light source: LED not replaceable
Rated ambient temperature according to IEC62722-2-1: -25 to 35 °C
Connection type: other
With operating device: yes
Without dimming function: yes
Light emission: direct
Light distribution: symmetrical
With light sensor: no
Operating device: EVG
Suitable for recessed installation: no
Light color: white
Suitable for computer workstations in accordance with EN 12464-1: no
Suitable for strip light configuration: yes
Suitable for pendant suspension: yes
Suitable for surface mounting: yes
Suitable for emergency lighting: no
Design of the grid: without
Covering of the luminaire with thermal insulation material possible: no
Dimming DMX: no
Dimming DSI: no
With louvers: no
Dimming LineSwitch: no
Dimming potentiometer (device integrated): no
Dimming 0-10 V: no
Dimming GPRS: no
Dimming 1-10 V: no
Dimming manufacturer-specific: no
Dimming DALI: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Dimming depending on the operating device: no
Luminaire luminous efficacy: 142 lm/W

Characteristics

HABMon22 diff 5400lm 840 5x2.5² PC
ManufacturerSiteco
HAN51FB207P460B005
GTIN4058352520192
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated luminous flux according to IEC 62722-2-15400.00lm
Rated ambient temperature according to IEC62722-2-1-25 to 35 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width90.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationYes
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorGray
Height/Depth88 mm
Luminaire with limited surface temperature D-markYes
Luminaire luminous efficacy142lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length1590.00 mm
Max. system performance38W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionYes
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
Housing materialPlastic
