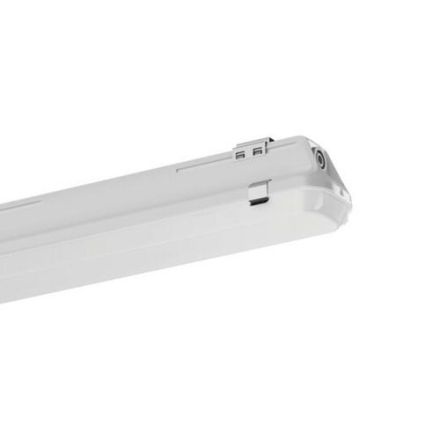

Siteco 51FP10EP460H Mon12 br 6050lm 840 DA2 PMMA LED damp-proof luminaire

Siteco 51FP10EP460H Mon12 br 6050lm 840 DA2 PMMA LED damp-proof luminaire

In stock

SKU: 889212

Price on request

€471.50

€0

Overview

Monsun 12, damp-proof luminaire, chain suspension, primary lighting technology. Cover: cover tray, made of PMMA, light emission: direct beam, primary light characteristic: symmetrical, mounting type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED rated luminous flux: 6,050 lm, light colour: 840, colour temperature: 4000K, ballast: EVG-DALI, with terminal, 5-pin, max. 2.5mm, 50/60Hz, rated power: 35W, luminaire housing, made of polyester, glass fibre reinforced, untreated, light grey, length: 1,590 mm, width: 90 mm, height: 88 mm, cover tray closure, made of stainless steel (V2A), ceiling mounting element, made of stainless steel (V2A), chain hanger, made of stainless steel (V2A), protection rating (total): IP66, protection class (total): SK I (protective earthing), test mark: ENEC, protection mark: D, impact resistance: IK04, permissible ambient temperature for indoor spaces: -25..+40°C, standard: EN 50419, EN 60598-2-1, no direct snow, no direct sunlight, no direct rain, for indoor or covered outdoor installation, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry, for livestock farming (ammonia tested): for use in cow, pig and horse stables, etc. (not for use in poultry stables), UT max for livestock farming = 40°C

Property	Value
Max. System power:	35 W
Rated luminous flux according to IEC 62722-2-1:	6050.00 lm
Length:	1590.00 mm
Width:	90.00 mm
Height/depth:	88 mm
Protection rating (IP):	IP66
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK04
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-25 to 40 °C
Connection type:	other
With operating device:	yes
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	yes
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With louvers:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	175 lm/W

Characteristics

HABMon12 br 6050lm 840 DA2 PMMA

Manufacturer

HAN51FP10EP460H

GTIN4058352389256

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-16050.00lm

Rated ambient temperature according to IEC62722-2-1-25 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width90.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorGray

Height/Depth88 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy175lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1590.00 mm

Max. system performance35W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK04

IP protection)IP66

Protection classI

Voltage typeAC

Housing materialPlastic
