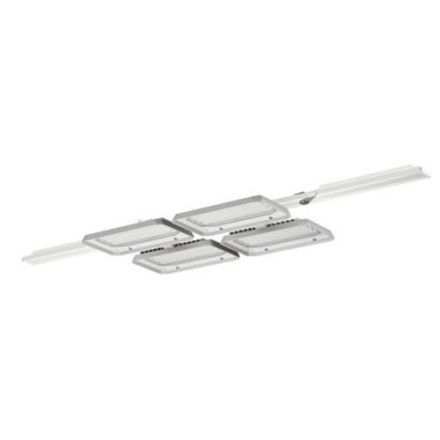

Highbay 11, LED high bay light, front wall, primary light control with lens, made of PMMA, light emission: direct beam, primary light characteristic: symmetrical, mounting type: recessed, for 2x 2 x LED, rated luminous flux: 32,370 lm, light color: 840, color temperature: 4000K, ballast: EVG-DALI, with system connection, 50/60Hz, rated power: 190W, LED unit, made of die-cast aluminum, uncoated, pearl blasted, silver, length: 1,500 mm, width: 500 mm, height: 65mm, housing, made of die-cast aluminum, untreated, pearl blasted, silver, rail-side fastening, made of aluminum, anodized, silver gray, front wall, made of PC, gray, protection type (total): IP64, protection class (total): SK I (protective earthing), test mark: protection mark: D, impact resistance: IK08 with glass or PC cover, permissible ambient temperature for indoor areas: -35..+45°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry
| Property | Value |
| Max. System power: | 190 W |
| Rated luminous flux according to IEC 62722-2-1: | 32370.00 lm |
| Protection class: | I |
| Impact resistance: | IK08 |
| Protection class (IP): | IP64 |
| Housing color: | Silver |
| Color temperature: | 4000 K |
| Suitable for number of bulbs: | 4 |
| Light source: | LED not replaceable |
| Length: | 1500.00 mm |
| Width: | 500.00 mm |
| Height/depth: | 65 mm |
| Socket: | without |
| With light source: | yes |
| Operating device: | EVG |
| Nominal voltage: | 230 to 240 V |
| Beam angle: | narrow beam 11-20° |
| DALI dimming: | yes |
| Light colour: | white |
| With operating device: | yes |
| Voltage type: | AC |
| Suitable for emergency lighting: | no |
| Housing material: | Aluminium |
| With Protective cover: | no |
| Reflector material: | plastic |
| Reflector: | without |
| Ball-proof: | no |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Color rendering index CRI: | 80-89 |
| Light distribution: | symmetrical |
| Suitable for secondary lamps: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming leading edge: | no |
| Dimming leading edge: | no |
| Dimming potentiometer (integrated into the device): | no |
| Dimming GPRS: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Rated ambient temperature according to IEC62722-2-1: | -35 to 45 °C |
