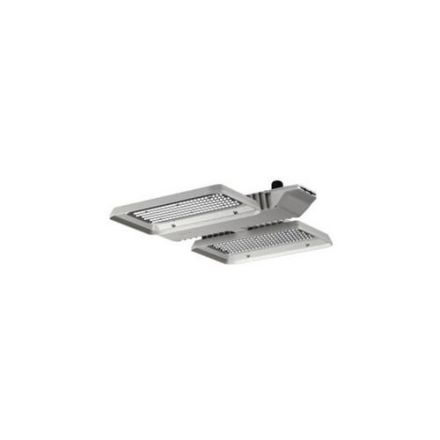

Highbay 11, LED high bay light, primary light control with lens, made of PMMA, light emission: direct beam, primary light characteristic: symmetrical, mounting type: suspended mounting, for 1x 2 x LED, rated luminous flux: 14,400 lm, light colour: 840, colour temperature: 4000K, ballast: EVG-DALI, with terminal, 5-pin, max. 2.5mm, 50/60Hz, rated power: 81W, LED unit, made of die-cast aluminium, uncoated, pearl blasted, silver, length: 470 mm, width: 500 mm, height: 65 mm, housing, made of die-cast aluminium, untreated, pearl blasted, silver, protection type (total): IP20, protection class (total): SK I (protective earthing), test mark: ENEC, protection mark: D, ball impact safety: ball impact safe in accordance with DIN0710 Part 13 (with chain suspension), permissible ambient temperature for indoor spaces: -35..+55°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry, with ceiling installation the permissible maximum ambient temperature is reduced by 5°C
| Property | Value |
| Max. System power: | 81 W |
| Rated luminous flux according to IEC 62722-2-1: | 14400.00 lm |
| Protection class: | I |
| Protection rating (IP): | IP20 |
| Housing colour: | Silver |
| Colour temperature: | 4000 K |
| Suitable for number of bulbs: | 2 |
| Bulb: | LED not replaceable |
| Length: | 470.00 mm |
| Width: | 500.00 mm |
| Height/depth: | 65 mm |
| Socket: | without |
| With light source: | yes |
| Operating device: | EVG |
| Nominal voltage: | 230 to 240 V |
| Beam angle: | wide beam 41-80° |
| DALI dimming: | yes |
| Light color: | white |
| With control gear: | yes |
| Voltage type: | AC |
| Suitable for emergency lighting: | no |
| Housing material: | aluminum |
| Mounting type: | pendant |
| With protective cover: | no |
| Reflector material: | plastic |
| Reflector: | without |
| Ball-proof: | no |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Color rendering index CRI: | 80-89 |
| Light distribution: | symmetrical |
| Suitable for secondary lamps: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming leading edge: | no |
| Dimming leading edge: | no |
| Dimming potentiometer (integrated into the device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Rated ambient temperature according to IEC62722-2-1: | -35 to 55 °C |
| Connection type: | other |
