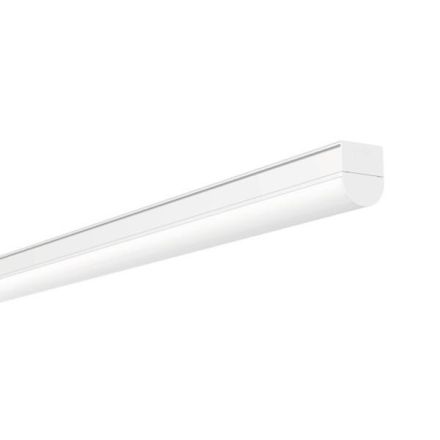

Siteco 51LJ12DKM40A Ecop31 1149 4300lm830/840/850 DA2 LED under-cabinet luminaire LB22

Siteco 51LJ12DKM40A Ecop31 1149 4300lm830/840/850 DA2 LED under-cabinet luminaire LB22

In stock

SKU: 889934

Price on request

€124.20

€0

Overview

Ecopack 31, diffuser lamp, primary lighting technology. Cover: cover, made of PC, satined, light emission: direct beam, primary light characteristic: symmetrical, mounting type: surface-mounted, LED rated luminous flux: 4,300 lm, light color: 830/840/850, color temperature: 3000/4000/5000K, ballast: EVG-DALI, with terminal, 5-pin, 50/60Hz, rated power: 33W, housing, made of aluminum, traffic white (RAL 9016), length: 1,149 mm, width: 56 mm, height: 68 mm, front wall, made of PC, white, protection type (total): IP20, protection class (total): SK I (protective earthing), test mark: impact resistance: IK06, permissible ambient temperature for indoor rooms: -20..+40°C

Property	Value
Max. System power:	33 W
Rated luminous flux according to IEC 62722-2-1:	4300.00 lm
Length:	1149.00 mm
Width:	56.00 mm
Height/depth:	68 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 to 5000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	other
With operating device:	yes
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Cover of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	130 lm/W

Characteristics

HABEcop31 1149 4300lm830/840/850 DA2

Manufacturer

HAN51LJ12DKM40A

GTIN4058352589519

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-14300.00lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width56.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000 to 5000 K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth68 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy130lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1149.00 mm

Max. system performance33W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Impact resistanceIK06

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
