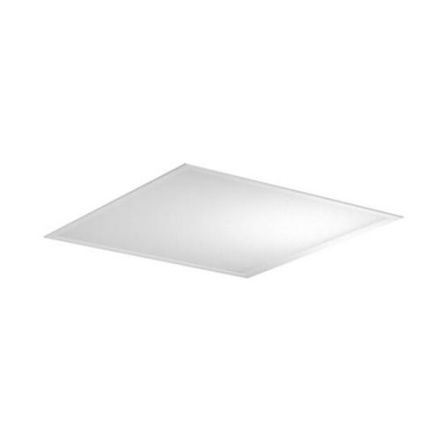

Siteco 51MP12W72341 Apol31s M600 3800lm 830 0/1 IP20/IP40 3p LED recessed luminaire

Siteco 51MP12W72341 Apol31s M600 3800lm 830 0/1 IP20/IP40 3p LED recessed luminaire

In stock

SKU: 888831

Price on request

€120.75

€0

Overview

Apollon 31, office lamp, primary lighting technology. Cover: microprismatic cover, made of PMMA, BAP65 (Lmax 3000cd/m ), light emission: direct distribution, primary light characteristic: symmetrical, mounting type: lay-in mounting, LED rated luminous flux: 3,800 lm, light color: 830, color temperature: 3000K, ballast: EVG, with terminal, 3-pin, 50/60Hz, rated power: 35W, housing, made of aluminum, traffic white (RAL 9016), module: M600, length: 597 mm, width: 597 mm, height: 40mm, housing top, made of sheet steel, galvanized, protection type (total): IP20, protection class (total): SK II (safety insulated), test mark: ENEC, impact resistance: IK02, permissible ambient temperature for indoor areas: -20..+40°C

Property	Value
Max. System power:	35 W
Rated luminous flux according to IEC 62722-2-1:	3800.00 lm
Length:	597.00 mm
Width:	597.00 mm
Height/depth:	40 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	other
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	EVG
Suitable for recessed installation:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	109 lm/W

Characteristics

HABApol31s M600 3800lm 830 0/1 IP20/IP40 3p

Manufacturer

HAN51MP12W72341

GTIN4058352451458

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-13800.00lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width597.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth40 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy109lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length597.00 mm

Max. system performance35W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK02

IP protection)IP20

Protection classII

Voltage typeAC

Housing materialAluminum
