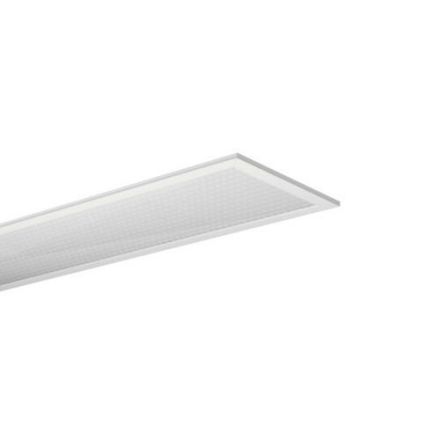

Siteco 51MQ17W72412 Apol21 1545x307 6900lm 840 0/1 3p LED recessed luminaire

Siteco 51MQ17W72412 Apol21 1545x307 6900lm 840 0/1 3p LED recessed luminaire

In stock

SKU: 888751

Price on request

€313.95

€0

Overview

Apollon 21, office lamp, primary lighting technology. Cover: microprismatic cover, BAP65 (Lmax 3000cd/m ), light emission: direct beam, primary light characteristic: symmetrical, mounting type: lay-in mounting, LED rated luminous flux: 7,200 lm, light color: 840, color temperature: 4000K, ballast: electronic ballast, with terminal, 3-pin, 50/60Hz, rated power: 60W, housing, made of aluminum, painted, bright white, length: 1,545 mm, width: 307 mm, height: 48mm, housing top, made of sheet steel, galvanized, protection class (total): IP20, protection class (lamp compartment, room side): IP50, protection class (total): SK I (protective earthing), test mark: ENEC

Property	Value
Max. System power:	60 W
Rated luminous flux according to IEC 62722-2-1:	7200.00 lm
Length:	1545.00 mm
Width:	307.00 mm
Height/depth:	48 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With Air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	120 lm/W

Characteristics

HABApol21 1545x307 6900lm 840 0/1 3p

Manufacturer

HAN51MQ17W72412

GTIN4058352490716

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-17200.00lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width307.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth48 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1545.00 mm

Max. system performance60W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum

Siteco 51MQ17W72412 Apol21 1545x307 6900lm 840 0/1 3p LED recessed luminaire

Price on request

€313.95

€0
