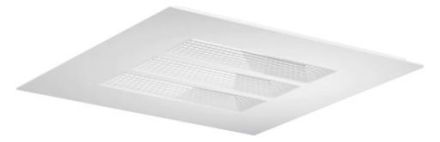

Siteco 51MT1LD0JHGDDC02 Taris 4620lm 840 DA El M625 LED recessed luminaire

Siteco 51MT1LD0JHGDDC02 Taris 4620lm 840 DA El M625 LED recessed luminaire

In stock

SKU: 888902

Price on request

€363.40

€0

Overview

Taris 21, office luminaire, primary glare control with micro-grid, primary lighting technology. Cover: axial lens, made of PMMA, structured, BAP65 (Lmax 1500cd/m ), light emission: direct distribution, primary light characteristic: symmetrical, mounting type: lay-in mounting, LED rated luminous flux: 4,620 lm, light color: 840, color temperature: 4000K, ballast: EVG-DALI, with terminal, 5-pin, 50Hz, rated power: 27W, housing, luminaire housing, made of plastic, traffic white (RAL 9016), module: M625, length: 622 mm, width: 622 mm, height: 42mm, protection type (total): IP20, protection class (total): SK I (protective earthing), test mark: ENEC, protection mark: F, impact resistance: IK02, permissible ambient temperature for indoor rooms: 0..+35°C, standard: EN 50419

Property	Value
Max. System power:	27 W
Rated luminous flux according to IEC 62722-2-1:	4620.00 lm
Length:	622.00 mm
Width:	622.00 mm
Height/depth:	42 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	0 to 35 °C
Connection type:	other
With operating device:	yes
Cover material:	structured plastic
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	without
Covering the lamp with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	169 lm/W

Characteristics

HABTaris 4620lm 840 DA El M625

Manufacturer

HAN51MT1LD0JHGDDC02

GTIN4058352218969

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-14620.00lm

Rated ambient temperature according to IEC62722-2-10 to 35 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width622.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth42 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy169lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length622.00 mm

Max. system performance27W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage230V

Without dimming functionNo

Impact resistanceIK02

IP protection)IP20

Protection classI

Voltage typeAC

Cover materialPlastic structured

Housing materialPlastic
