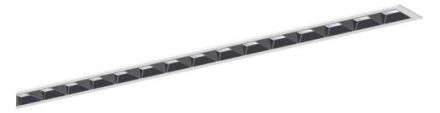

HABSil21 Dark.Refl 5400lm 840 DA2 ws L1504
HAN51MX11DB45W
GTIN4058352582183
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Execution of the gridWithout
Beam angleNarrow beam 11-20°
Rated luminous flux according to IEC 62722-2-15400.00lm
Rated ambient temperature according to IEC62722-2-10 to 35 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1Yes
Width77.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth53 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy142lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length1504.00 mm
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialAluminum
