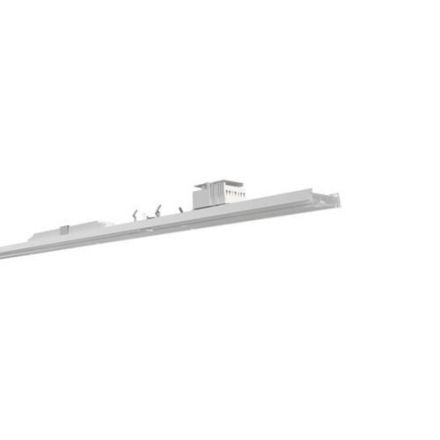

Siteco 51TL12DN59XF Lic11Re br 9160lm 850 IP40 L:150cm LED device carrier

Siteco 51TL12DN59XF Lic11Re br 9160lm 850 IP40 L:150cm LED device carrier

In stock

SKU: 888322

Price on request

€288.65

€0

Overview

Licross 11 Recessed MO luminaire insert, length: 1,500 mm, width: 66 mm, height: 67 mm, LED rated luminous flux: 9,160 lm, light colour: 850, ballast: DALI 2, ballast: EVG-DALI, with plug, 5-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, wiring halogen-free, primary lighting technology. Cover: cover made of PMMA, light emission: direct beam, protection type (overall): IP40, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment without relevant dust pollution with appropriate accessories, permissible ambient temperature for indoor areas: -25..+40°C, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry

DALI dimming:

Property	Value
Luminous flux:	9070.00 lm
Color temperature:	5000 K
With light source:	yes
Operating device:	EVG
Length:	1500.00 mm
Width:	66.00 mm
Height/depth:	67 mm
Protection class (IP):	IP40
Protection class:	I
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
no
DMX dimming:	no
Manufacturer-specific dimming:	no
DSI dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming line switch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming sine wave reduction:	no
Dimming touch and dim:	no
dimming Zigbee:	no
dimming with push button:	no
Without dimming function:	no
Beam angle:	wide beam 41-80°
Max. System power:	55 W
Connection type:	other
Replaceable operating device:	no
Color consistency (McAdam ellipse):	SDCM3
Integrated emergency power supply:	no
Luminaire luminous efficacy:	164 lm/W
Constant luminous flux control:	no

Characteristics

HABLic11Re br 9160lm 850 IP40 L:150cm

Manufacturer

HAN51TL12DN59XF

GTIN4058352434239

Connection typeOther

Beam angleWide beam 41-80°

Replaceable operating deviceNo

Operating deviceElectronic ballast

Width66.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature5000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth67 mm

Constant luminous flux controlNo

Luminaire luminous efficacy164lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux9070.00lm

Length1500.00 mm

Max. system performance55W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Without dimming functionNo

ReflectorWithout

IP protection)IP40

Protection classI

Voltage typeAC

Housing materialSteel
