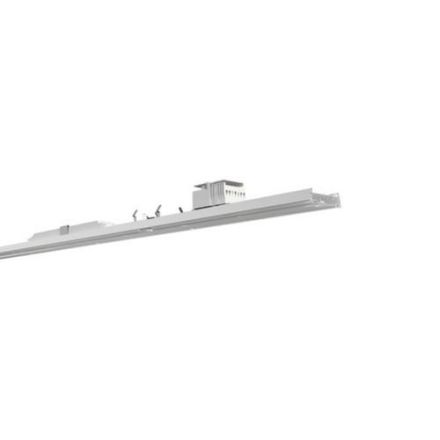

Siteco 51TL18DN485F Lic11Re med 8910lm 840 DA2 L:150cm LED device carrier

Siteco 51TL18DN485F Lic11Re med 8910lm 840 DA2 L:150cm LED device carrier

In stock

SKU: 888445

Price on request

€373.75

€0

Overview

Licross 11 Recessed MO luminaire insert, length: 1,500 mm, width: 66 mm, height: 67 mm, LED rated luminous flux: 8,910 lm, light colour: 840, ballast: DALI 2, ballast: EVG-DALI, with plug, 5-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, wiring halogen-free, primary lighting technology. Cover: cover made of PMMA, light emission: direct beam, protection type (overall): IP40, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment without relevant dust pollution with appropriate accessories, permissible ambient temperature for indoor areas: -25..+40°C, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry

Property	Value
Rated luminous flux according to IEC 62722-2-1:	8910.00 lm
Color temperature:	4000 K
With Light source:	yes
Operating device:	EVG
Length:	1500.00 mm
Width:	66.00 mm
Height/depth:	67 mm
Protection type (IP):	IP40
Protection class:	I
Light emission:	direct
Suitable for Emergency light:	no
Material of the housing:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Beam angle:	medium beam 21-40°
Max. system power:	55 W
Connection type:	other

Characteristics

HABLic11Re med 8910lm 840 DA2 L:150cm

Manufacturer

HAN51TL18DN485F

GTIN4058352296134

Connection typeOther

Beam angleMedium beam 21-40°

Rated luminous flux according to IEC 62722-2-18910.00lm

Operating deviceElectronic ballast

Width66.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth67 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Length1500.00 mm

Max. system performance55W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

ReflectorWithout

IP protection)IP40

Protection classI

Voltage typeAC

Housing materialSteel
