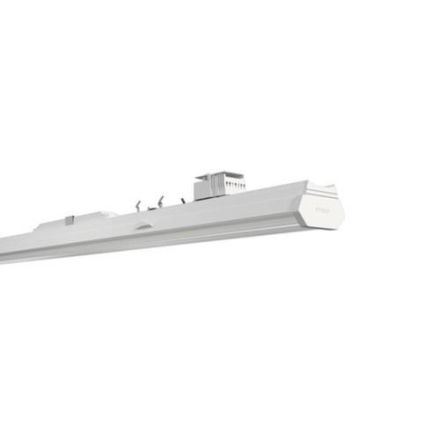

Siteco 51TP12CN48XF Licross LE sym 8180lm 840 ML LED device carrier

In stock
SKU: 888054
€302.45
Into a basketIn the basketGo

Overview

Licross 11 Protected MO luminaire insert, length: 1,500 mm, width: 90 mm, height: 101 mm, LED rated luminous flux: 8,180 lm, light colour: 840, ballast: ON/OFF Multilumen, CLOi, ballast: EVG-Multilumen, with plug, 3-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, wiring halogen-free, primary lighting technology. Cover: cover made of PMMA, light emission: direct with ceiling illumination, protection type (overall): IP64, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment with conductive dust pollution with appropriate accessories, permissible ambient temperature for indoor areas: -35..+40°C, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry

Property Value
Rated luminous flux according to IEC 62722-2-1: 8180.00 lm
Color temperature: 4000 K
With light source: yes
Operating device: EVG
Length: 1500.00 mm
Width: 90.00 mm
Height/depth: 101 mm
Protection type (IP): IP64
Protection class: I
Light emission: direct/indirect
Suitable for emergency lighting: no
Housing material: steel
Housing color: white
Color rendering index CRI: 80-89
With operating device: yes
Reflector: without
Socket: without
Nominal voltage: 220 to 240 V
Light source: LED not replaceable
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming manufacturer-specific: no
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Beam angle: wide beam 41-80°
Max. system power: 54.00 W
Connection type: other

Characteristics

HABLicross LE sym 8180lm 840 ML
ManufacturerSiteco
HAN51TP12CN48XF
GTIN4058352210413
Connection typeOther
Beam angleWide beam 41-80°
Rated luminous flux according to IEC 62722-2-18180.00lm
Operating deviceElectronic ballast
Width90.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for emergency lightingNo
Housing colorWhite
Height/Depth101 mm
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Length1500.00 mm
Max. system performance54.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionYes
ReflectorWithout
IP protection)IP64
Protection classI
Voltage typeAC
Housing materialSteel
