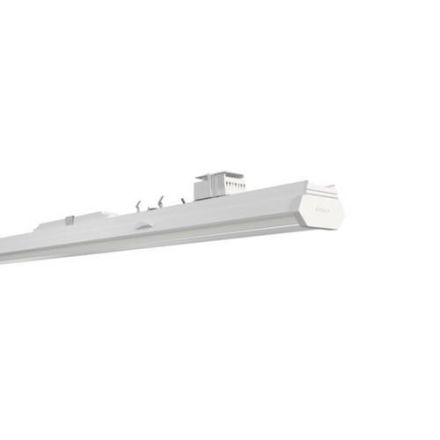

Siteco 51TP12CN58XF Lic11Pr 8190lm 850 MLCi IP64 L:150cm LED device carrier

Siteco 51TP12CN58XF Lic11Pr 8190lm 850 MLCi IP64 L:150cm LED device carrier

In stock

SKU: 889619

Price on request

€302.45

€0

Overview

Licross 11 Protected MO luminaire insert, length: 1,500 mm, width: 90 mm, height: 101 mm, LED rated luminous flux: 8,190 lm, light colour: 850, ballast: ON/OFF Multilumen, CLOi, ballast: EVG-Multilumen, with plug, 3-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, wiring halogen-free, primary lighting technology. Cover: cover made of PMMA, light emission: direct with ceiling illumination, protection type (overall): IP64, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment with conductive dust pollution with appropriate accessories, permissible ambient temperature for indoor areas: -35..+40°C, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry

Property	Value
Rated luminous flux according to IEC 62722-2-1:	8190.00 lm
Color temperature:	5000 K
With light source:	yes
Operating device:	EVG
Length:	1500.00 mm
Width:	90.00 mm
Height/depth:	101 mm
Protection type (IP):	IP64
Protection class:	I
Light emission:	direct/indirect
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Beam angle:	wide beam 41-80°
Max. system power:	54.00 W
Connection type:	other

Characteristics

HABLic11Pr 8190lm 850 MLCi IP64 L:150cm

Manufacturer

HAN51TP12CN58XF

GTIN4058352241455

Connection typeOther

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-18190.00lm

Operating deviceElectronic ballast

Width90.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth101 mm

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Length1500.00 mm

Max. system performance54.00W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

ReflectorWithout

IP protection)IP64

Protection classI

Voltage typeAC

Housing materialSteel
