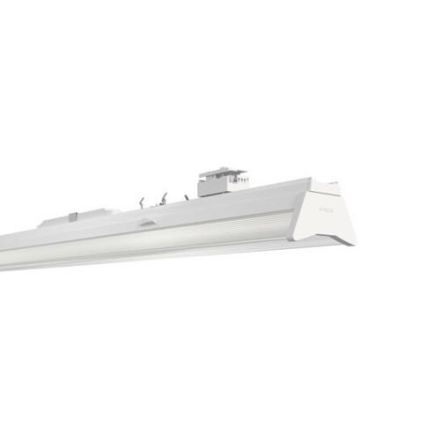

Licross 11 Performance MO luminaire insert, length: 1,500 mm, width: 120 mm, height: 123 mm, LED rated luminous flux: 9,140 lm, light colour: 840, ballast: DALI 2, ballast: EVG-DALI, with plug, 6-pin, with phase selection, mains connection: 220..240 V, AC/DC, 0/50..60 Hz, for central battery systems in accordance with DIN EN 60598-2-22, for emergency lighting function, without changeover relay, halogen-free wiring, primary light control with lens, made of plastic, primary lighting technology. Cover: cover made of PMMA, light emission: direct/indirect beam, protection rating (overall): IP50, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment without relevant dust pollution with appropriate accessories, permissible ambient temperature for indoor areas: -25..+40°C, standard: EN 60598-2-22, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 9140.00 lm |
| Color temperature: | 4000 K |
| With light source: | yes |
| Operating device: | EVG |
| Length: | 1500.00 mm |
| Width: | 120.00 mm |
| Height/depth: | 123 mm |
| Protection type (IP): | IP50 |
| Protection class: | I |
| Light emission: | direct/indirect |
| Suitable for emergency lighting: | yes |
| Material of the housing: | steel |
| Housing colour: | white |
| Colour rendering index CRI: | 80-89 |
| With operating device: | yes |
| Reflector: | without |
| Socket: | without |
| Nominal voltage: | 220 to 240 V |
| Light source: | LED not replaceable |
| Light color: | white |
| Voltage type: | AC/DC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming manufacturer-specific: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Beam angle: | wide beam 41-80° |
| Max. system power: | 56 W |
| Connection type: | other |
