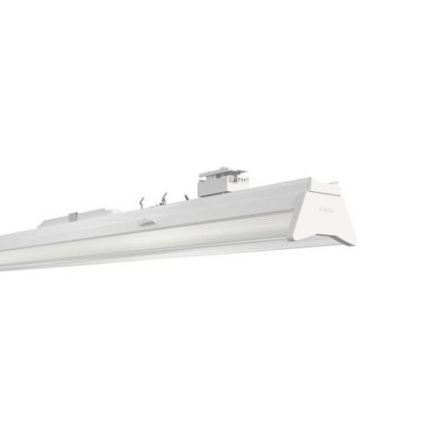

Siteco 52TS16DNE75F Lic21Pe br 7820lm 950 DA2 L:150cm LED device carrier

In stock
SKU: 888554
€353.05
Into a basketIn the basketGo

Overview

Licross 21 Performance MO luminaire insert, length: 1,500 mm, width: 120 mm, height: 123 mm, LED rated luminous flux: 7,820 lm, light colour: 950, ballast: DALI 2, ballast: EVG-DALI, with plug, 5-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, wiring halogen-free, primary light control with lens, made of plastic, primary lighting technology. Cover: cover made of PMMA, light emission: direct/indirect beam, primary light characteristic: symmetrical, protection type (overall): IP50, protection class (overall): SK I (protective earthing), test mark: ENEC, protection mark: D when used in an environment with non-conductive dust load with appropriate accessories, permissible ambient temperature for indoor areas: -25..+40°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C

Property Value
Rated luminous flux according to IEC 62722-2-1: 7820.00 lm
Color temperature: 5000 K
With light source: yes
Operating device: EVG
Length: 1500.00 mm
Width: 120.00 mm
Height/depth: 123 mm
Protection type (IP): IP50
Protection class: I
Light emission: direct/indirect
Suitable for emergency lighting: no
Material of the housing: steel
Housing colour: white
Colour rendering index CRI: 90-100
With operating device: yes
Reflector: without
Socket: without
Nominal voltage: 220 to 240 V
Light source: LED not replaceable
Light color: white
Voltage type: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming manufacturer-specific: no
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Beam angle: wide beam 41-80°
Max. system power: 61 W
Connection type: other

Characteristics

HABLic21Pe br 7820lm 950 DA2 L:150cm
ManufacturerSiteco
HAN52TS16DNE75F
GTIN4058352455241
Connection typeOther
Beam angleWide beam 41-80°
Rated luminous flux according to IEC 62722-2-17820.00lm
Operating deviceElectronic ballast
Width120.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature5000K
Color rendering index CRI90-100
VersionWithout
Suitable for emergency lightingNo
Housing colorWhite
Height/Depth123 mm
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Length1500.00 mm
Max. system performance61 W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
ReflectorWithout
IP protection)IP50
Protection classI
Voltage typeAC
Housing materialSteel
