Siteco 53BD812D2V4085 DUS31MO LE 8930lm 840 DALI PMMA dir LED gear tray

Siteco 53BD812D2V4085 DUS31MO LE 8930lm 840 DALI PMMA dir LED gear tray

In stock

SKU: 958702

Price on request

€242.65

€0

Overview

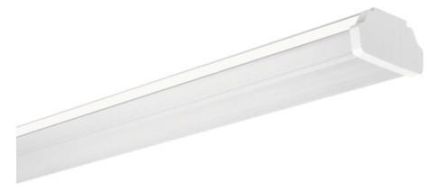

DUS 31 MO luminaire insert, length: 1,535 mm, width: 81 mm, height: 90 mm, LED rated luminous flux: 8,930 lm, light colour: 840, ballast: DALI 2, ballast: EVG-DALI, with plug, 5-pin, with phase selection, mains connection: 220..240 V, AC, 50/60 Hz, primary lighting technology. Cover: cover, made of PMMA, light emission: direct beam, primary light characteristic: symmetrical, protection class (total): IP20, protection class (LED compartment): IP50, protection class (total): SK I (protective earthing), test mark: ENEC,UKCA, permissible ambient temperature for indoor areas: -25..+30°C, complies with the requirements of IFS (International Featured Standards) for safety and quality in the food industry, when mounted on the ceiling, the permissible maximum ambient temperature is reduced by 5°C

Property	Value
Rated luminous flux according to IEC 62722-2-1:	8930.00 lm
Color temperature:	4000 K
With Light source:	yes
Operating device:	EVG
Length:	1535.00 mm
Width:	81.00 mm
Height/depth:	90 mm
Protection type (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing material:	steel
Housing color:	white
Color rendering index CRI:	80-89
With operating device:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Without dimming function:	no
Beam angle:	wide beam 41-80°
Max. system power:	62 W
Connection type:	other

Characteristics

HABDUS31MO LE 8930lm 840 DALI PMMA dir

Manufacturer

HAN53BD812D2V4085

GTIN4058352421703

Connection typeOther

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-18930.00lm

Operating deviceElectronic ballast

Width81.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth90 mm

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length1535.00 mm

Max. system performance62W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialSteel
