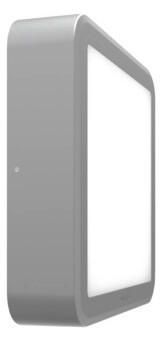

HABCL31 Bulkhead 15W quad 1575lm 830 DALI
HAN5CL761603
GTIN4058352521595
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Execution of the gridWithout
Beam angleFree-radiating/diffuse
Rated luminous flux according to IEC 62722-2-11575.00lm
Rated ambient temperature according to IEC62722-2-1-20 to 50 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width266.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorSilver
Height/Depth63 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy105lm/W
LampsLED not replaceable
Light colorWhite
Light distributionSymmetrical
Length266.00 mm
Max. system performance15W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Impact resistanceIK09
IP protection)IP65
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialAluminum
