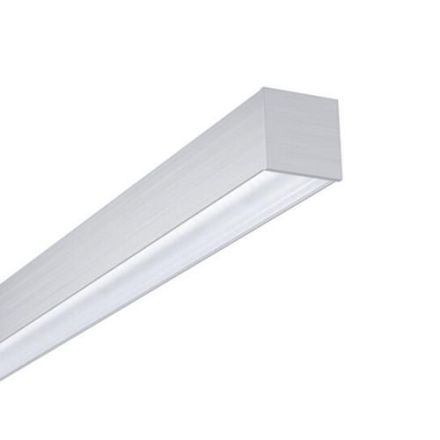

Siteco 5MX31BD1E4A Silica 7070lm 840 DALI si L1442 Ab LED pendant luminaire

Siteco 5MX31BD1E4A Silica 7070lm 840 DALI si L1442 Ab LED pendant luminaire

In stock

SKU: 888002

Price on request

€670.69

€0

Overview

Silica, office light, made of aluminum, light emission: direct/indirect beam, primary light characteristic: symmetrical, mounting type: suspended mounting, LED rated luminous flux: 7,070 lm, light color: 840, color temperature: 4000K, ballast: EVG-DALI, with terminal, 3+2-pin, max. 2.5mm, 50/60Hz, connecting cable included, cable length: 1.5 m, rated power: 46W, light housing, made of aluminum, anodized, silver, length: 1,442 mm, width: 65 mm, height: 64mm, protection type (total): IP20, protection class (total): SK I (protective earthing), test mark: permissible ambient temperature for indoor rooms: 0..+35°C, standard: EN 50419

Property	Value
Max. System power:	46 W
Rated luminous flux according to IEC 62722-2-1:	7070.00 lm
Length:	1442.00 mm
Width:	65.00 mm
Height/depth:	64 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	4000 K
Color rendering index CRI:	80-89
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With operating device:	yes
Without dimming function:	no
Light output:	direct/indirect
Light distribution:	symmetrical
Operating device:	EVG
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for emergency lighting:	no
Design of the grid:	without
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push-button:	no
Rated service life L80/B50 at 25 °C:	50000.00 h

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L80/B50 at 25 °C50000.00 h

HABSilica 7070lm 840 DALI si L1442 Ab

Manufacturer

HAN5MX31BD1E4A

GTIN4058352305430

Connection typeOther

Execution of the gridWithout

Rated luminous flux according to IEC 62722-2-17070.00lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width65.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorSilver

Height/Depth64 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributionSymmetrical

Length1442.00 mm

Max. system performance46W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

IP protection)IP20

Protection classI

Voltage typeAC

Housing materialAluminum
