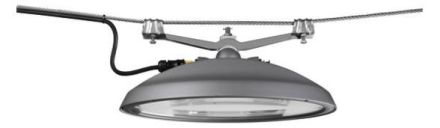

DL 50 mini, rope light, primary light control with 3-zone facet reflector, made of plastic, silver coated, high-gloss, primary light technology. Cover: cover, made of toughened safety glass, clear, partially printed using the screen printing process, light distribution: ST0.5s, light emission: direct distribution, primary light characteristic: symmetrical, mounting type: suspended mounting, LED High Power LED, rated luminous flux: 7,310 lm, light color: 740, color temperature: 4000K, ballast: EVG Plus, control: flexible luminous flux parameterization, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, electronic power reduction, 50/60Hz, start of service life: 53 W, end of service life: 55 W, reduction: 25 W, luminaire housing, made of die-cast aluminum, powder-coated, Siteco iron mica (DB 702S), diameter: 500 mm, height: 115 mm, protection rating (total): IP66, protection class (total): SK II (safety insulation), test mark: ENEC, impact resistance: IK08, permissible ambient temperature for indoor spaces: -25..+25°C, standard-compliant square and street lighting
| Property | Value |
| Height/depth: | 115 mm |
| Diameter: | 500.00 mm |
| Max. System power: | 55.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 7310.00 lm |
| Color temperature: | 4000 K |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| Operating device: | EVG |
| With light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With operating device: | yes |
| Adjustable optics: | no |
| Cover material: | transparent glass |
| Housing material: | aluminum |
| Remote control: | without |
| Constant luminous flux control: | yes |
| Light color: | white |
| With connection cable: | no |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 25 °C |
| Luminaire luminous efficacy: | 149 lm/W |
