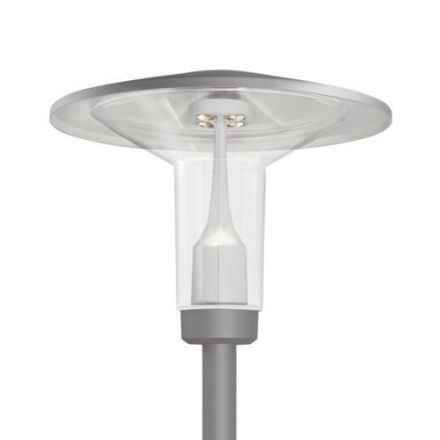

Lantern, mast light, module 540 Plus, primary light control with 3-zone facet reflector, made of plastic, silver coated, high-gloss, structured, primary lighting technology. Cover: cover, made of PMMA, clear, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetrical, mounting type: attachment, LED High Power LED, rated luminous flux: 2,720 lm, light colour: 722, colour temperature: 2200K, ballast: EVG Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, digital communication interface, power reduction, overheating protection, constant luminous flux control, electronic power reduction, with terminal, 6-pin, max. 2.5mm, 50/60Hz, start of service life: 26 W, end of service life: 27 W, reduction: 12 W, upper part of luminaire housing, made of polyester, glass fibre reinforced, painted, Siteco iron mica (DB 702S), diameter: 750 mm, height: 583 mm, for spigot size: dxl = 76 x 70mm (top-mounted), with reducer (optional accessory) 60 x 70mm, mast-mounted element, made of die-cast aluminum, painted, Siteco iron mica (DB 702S), Module 540 Plus, traffic white (RAL 9016), features: Power, protection rating (overall): IP65, protection class (overall): SK II (double insulation), test mark: ENEC, VDE
| Property | Value |
| Height/depth: | 583 mm |
| Diameter: | 750.00 mm |
| Max. System power: | 27.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 2720.00 lm |
| Color temperature: | 2200 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| Operating device: | EVG |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Mounting type: | Attachment |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With Operating device: | yes |
| Adjustable optics: | no |
| Cover material: | transparent plastic |
| Housing material: | plastic |
| Remote control: | without |
| Constant luminous flux control: | yes |
| Light color: | other |
| With connection cable: | no |
| With Radio control: | no |
| With program-controlled light control: | no |
| Surface: | painted |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Luminaire with limited surface temperature 'D-sign': | no |
| Luminaire luminous efficacy: | 107 lm/W |
| Connection type: | other |
