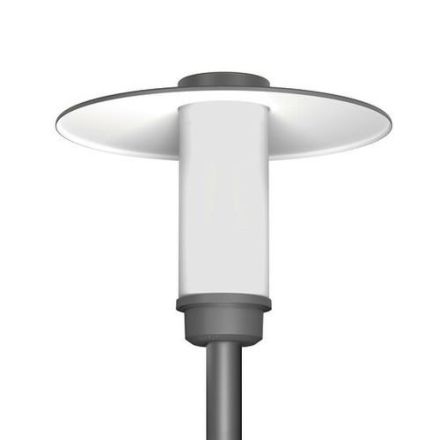

Siteco 5XA5423EB24H Litepole2 ST1.2a 1470lm 830 Plus LED mast luminaire

In stock
SKU: 888355
€1,325.42
Into a basketIn the basketGo

Overview

Litepole, mast light, module 540 Plus, primary light control with 3-zone facet reflector, made of plastic, silver coated, high-gloss, structured, primary light technology. Cover: cover, made of PMMA, satin, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetrical, mounting type: attachment, LED High Power LED, rated luminous flux: 1,470 lm, light color: 730, color temperature: 3000K, ballast: EVG Plus, control: overheating protection, power reduction, digital communication interface, time-dependent luminous flux control, flexible luminous flux parameterization, constant luminous flux control, electronic power reduction, with terminal, 6-pin, max. 2.5mm, 50/60Hz, start of service life: 14 W, end of service life: 14 W, reduction: 7 W, upper part of luminaire housing, made of aluminum, painted, Siteco iron mica (DB 702S), diameter: 750 mm, height: 590 mm, for spigot size: dxl = 76 x 70mm (attachment) , with reducer (optional accessory) 60 x 70mm, mast top element, made of die-cast aluminum, painted, Siteco iron mica (DB 702S), Module 540 Plus, traffic white (RAL 9016), features: standard, protection rating (overall): IP65, protection class (overall): SK II (double insulation), test mark: ENEC, VDE

Property Value
Height/depth: 590 mm
Diameter: 750.00 mm
Max. System power: 14.00 W
Rated luminous flux according to IEC 62722-2-1: 1470.00 lm
Color temperature: 3000 K
Suitable for spigot size: 76 mm
Nominal voltage: 220 to 240 V
Housing color: Silver
Operating device: EVG
With Light source: yes
Light source: LED not replaceable
Socket: without
Protection rating (IP): IP65
Protection class: II
Mounting type: Attachment
Color rendering index CRI: 70-79
Voltage type: AC
With Operating device: yes
Adjustable optics: no
Material of the housing: aluminium
Remote control: without
Constant luminous flux control: yes
Light color: white
With connection cable: no
With radio control: no
With program-controlled Light control: no
Surface: painted
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (integrated in device): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: yes
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Luminaire with limited surface temperature 'D-mark': no
Luminaire luminous efficacy: 109 lm/W
Connection type: other

Characteristics

HABLitepole2 ST1.2a 1470lm 830 Plus
ManufacturerSiteco
HAN5XA5423EB24H
GTIN4058352438824
Connection typeOther
Rated luminous flux according to IEC 62722-2-11470.00lm
Operating deviceElectronic ballast
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableYes
Diameter750.00 mm
Color temperature3000K
Color rendering index CRI70-79
VersionWithout
Remote controlWithout
Suitable for braid size76 mm
Housing colorSilver
Height/Depth590 mm
Constant luminous flux controlYes
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy109lm/W
LampsLED not replaceable
Light colorWhite
Max. system performance14.00 W
With connection cableNo
With operating deviceYes
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeEssay
Nominal voltage220 to 240 V
SurfacePainted
Without dimming functionNo
IP protection)IP65
Protection classII
Voltage typeAC
Housing materialAluminum
