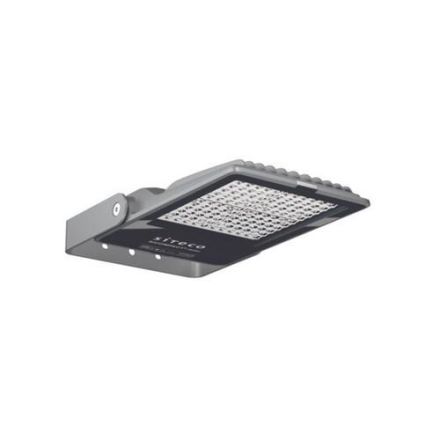

HABSiC31mn PL32 15000lm 730 0/1
HAN5XA7571C1K23
GTIN4058352624623
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Rated luminous flux according to IEC 62722-2-115000.00lm
Rated ambient temperature according to IEC62722-2-1-40 to 45 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width261.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI70-79
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingYes
Housing colorSilver
Height/Depth62 mm
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy150lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux15000.00lm
Light distributionAsymmetrical
Length461.00 mm
Max. system performance100W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfacePainted
Brushed surfaceNo
Without dimming functionYes
ReflectorWithout
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
Cover materialPlastic transparent
Housing materialAluminum
