Siteco 5XA7680E3B00C FL20md RS17 750 208/306W LED spotlight

Siteco 5XA7680E3B00C FL20md RS17 750 208/306W LED spotlight

In stock

SKU: 888937

Price on request

€970.72

€0

Overview

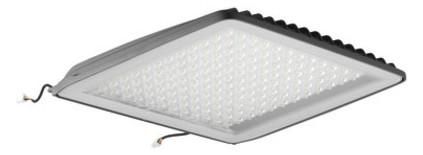

Floodlight FL 20 midi, LED unit, primary light control with lens, made of plastic, primary lighting technology. Cover: cover panel, made of toughened safety glass, clear, light distribution: RS17, light emission: direct distribution, primary light characteristic: asymmetrical, mounting type: screw fastening, LED High Power LED, light colour: 750, colour temperature: 5000K, with cable with plug, 50/60Hz, rated power: 208W/306W, LED unit, made of die-cast aluminium, powder-coated, Siteco iron mica (DB 702S), length: 402 mm, width: 421 mm, height: 57mm, protection class (total): IP66

Property	Value
Housing colour:	Silver
Housing material:	Aluminum
Protection class (IP):	IP66
Socket:	without
Light source:	LED not replaceable
With light source:	no
With operating device:	no
Suitable for recessed mounting:	no
Length:	402.00 mm
Width:	421.00 mm
Height/depth:	57 mm
With motion detector:	no
Color temperature:	5000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming depends on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light output:	direct
Connection type:	other
Suitable for computer workstations according to EN 12464-1:	no

Characteristics

HABFL20md RS17 750 208/306W

Manufacturer

HAN5XA7680E3B00C

GTIN4058352234389

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Suitable for computer workstations according to EN 12464-1No

Width421.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI70-79

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorSilver

Height/Depth57 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length402.00 mm

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

ReflectorWithout

IP protection)IP66

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum
