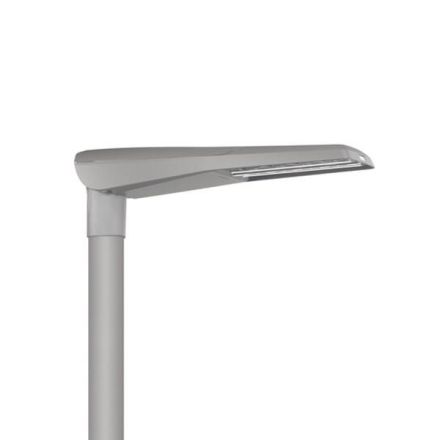

Streetlight SL 11, mast light, primary light control with 3-zone facet reflector, made of plastic, silver coated, high-gloss, primary light technology. Cover: cover, made of PMMA, clear, light distribution: ST1.2a, light emission: direct beam, primary light characteristic: asymmetrical, mounting type: attachment, attachment, LED High Power LED, rated luminous flux: 3,570 lm, light color: 730, color temperature: 3000K, ballast: EVG iQ, control: optimized constant luminous flux control (CLO 2.0), desk remote (wireless, voltage-free reading and setting of the iQ features in the workshop via application-optimized NFC function/RFID function), light fading, smart wire, night set, lumen switch, temp guard, auto match, with cable H07RN-F 5x 1.5mm, 50/60Hz, connection cable pre-assembled, cable length: 6.5 m, start of service life: 23 W, end of service life: 23 W, reduction: 12 W, luminaire housing, made of die-cast aluminum, powder-coated, Siteco iron mica (DB 702S), length: 736 mm, width: 174 mm, height: 116 mm, spigot size: 60/76 mm (top) and 42/60/76 mm (side), mast flange for spigot size: 42 mm: 5XC10008XM4, 60 mm: 5XC10008XM2, 76/60 mm: 5XC10108XM1, protection rating (total): IP66, protection class (total): SK II (protective insulation), test mark: ENEC, impact resistance: IK09, permissible ambient temperature for outdoor applications: -25..+50 ° C, standard-compliant square and street lighting
| Property | Value |
| Length: | 736.00 mm |
| Width: | 174.00 mm |
| Height/Depth: | 116 mm |
| Max. System power: | 23.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 3570.00 lm |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| With light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Mounting type: | Wall bracket |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With operating device: | no |
| Adjustable optics: | no |
| Cover material: | transparent plastic |
| Housing material: | aluminum |
| Remote control: | without |
| Cable length: | 6.50 m |
| Constant luminous flux control: | yes |
| Light color: | white |
| With connection cable: | no |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| Luminaire luminous efficacy: | 157 lm/W |
| Connection type: | other |
