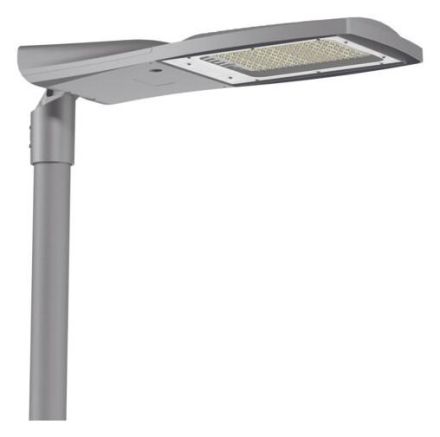

Siteco 5XF5E32D08SA SL31 mg ST1.0a 39200lm 730 Pl opt.CLO LED mast luminaire

Siteco 5XF5E32D08SA SL31 mg ST1.0a 39200lm 730 Pl opt.CLO LED mast luminaire

In stock

SKU: 958775

Price on request

€1,259.65

€0

Into a basketIn the basketGo

Overview

Streetlight SL 31 mega mast light, LED, 39,200lm730, EVG Plus, toughened safety glass, direct, attachment, approach

Property	Value
Length:	790.00 mm
Width:	383.00 mm
Height/depth:	97 mm
Max. System power:	275 W
Rated luminous flux according to IEC 62722-2-1:	39200.00 lm
Color temperature:	3000 K
Nominal voltage:	220 to 240 V
Housing color:	Silver
Operating device:	EVG
With light source:	yes
Light source:	LED not replaceable
Socket:	without
Protection rating (IP):	IP66
Protection class:	II
Impact resistance:	IK08
Mounting type:	Wall bracket
Color rendering index CRI:	70-79
Voltage type:	AC
With operating device:	yes
Adjustable optics:	no
Cover material:	transparent plastic
Housing material:	aluminum
Remote control:	without
Constant luminous flux control:	yes
Light color:	white
With connection cable:	no
With radio control:	no
With program-controlled light control:	no
Surface:	powder-coated
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-40 to 50 °C
Luminaire luminous efficacy:	143 lm/W

Characteristics

HABSL31 mg ST1.0a 39200lm 730 Pl opt.CLO

Manufacturer

HAN5XF5E32D08SA

GTIN4058352499573

Rated luminous flux according to IEC 62722-2-139200.00lm

Rated ambient temperature according to IEC62722-2-1-40 to 50 °C

Operating deviceElectronic ballast

Width383.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Color temperature3000K

Color rendering index CRI70-79

VersionWithout

Remote controlWithout

Housing colorSilver

Height/Depth97 mm

Constant luminous flux controlYes

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy143lm/W

LampsLED not replaceable

Light colorWhite

Length790.00 mm

Max. system performance275W

With connection cableNo

With operating deviceYes

With radio controlNo

With light sourceYes

With program-controlled lighting controlNo

Mounting typeWall bracket

Nominal voltage220 to 240 V

SurfacePowder coated

Without dimming functionNo

Impact resistanceIK08

IP protection)IP66

Protection classII

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum
