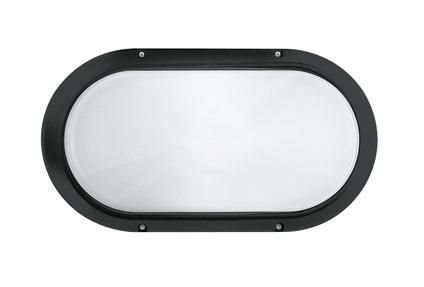

Spittler 001704 wall and ceiling light 1x60W IAA A60 symmetrical diffuser optics

In stock
SKU: 210598
€49.11
Into a basketIn the basketGo

Overview

Light fittings for wall, plinth, ceiling and bollard mounting, for indoor and outdoor use, comprising: body, cover, grille or VISA in technopolymer, diffuser in pressed glass, frosted inside, protection class II, parabolic reflector in aluminium for incandescent lamp versions, gaskets in polymer plastic, external screws in stainless steel

Feature Value
Suitable for wall mounting: No
Suitable for pendant suspension: No
Suitable for ceiling mounting: No
Suitable for recessed mounting: No
Suitable for surface mounting: Yes
Light source: General service lamp
With light source: No
Socket: E27
Suitable for number of light sources: 1
Lamp wattage: 60 W
Lamp wattage at Multiwatt: not applicable
Operating device: not required
With Operating device: No
Type of dimming: not dimmable
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Housing material: Plastic
Surface finish: matt
Housing color: black
Suitable for light strip configuration: No
Cover material: Opal glass
Suitable for computer workstations: No
Design of the grid: without
Reflector: other
Light distribution: symmetrical
Beam angle: free-beaming
Light emission: direct
Length: 275 mm
Width: 155 mm
Height/Depth: 116 mm
With motion detector: No
With light sensor: No
Protection class: II
Protection type (IP): IP54
Impact resistance: IK06
Fire protection 'D': No
Installation in insulated ceilings, Fire protection 'F with roof': No
Glow wire test according to IEC 60695-2-10: 960 °C - 5 s
With air slots: No
Voltage type: AC
Light color: other

Characteristics

HAB1704
ManufacturerSpittler
HAN001704
GTIN8018367017045
Surface finishFrosted
Execution of the gridWithout
Beam angleFree-radiating
Operating deviceNot required
Width155 mm
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorBlack
Height/Depth116 mm
Lamp power60W
LampsGeneral purpose lamp
Light emissionDirect
Light colorOther
Light distributionSymmetrical
Length275 mm
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
ReflectorOther
Impact resistanceIK06
Protection classII
Voltage typeAC
Cover materialGlass opal
Housing materialPlastic
