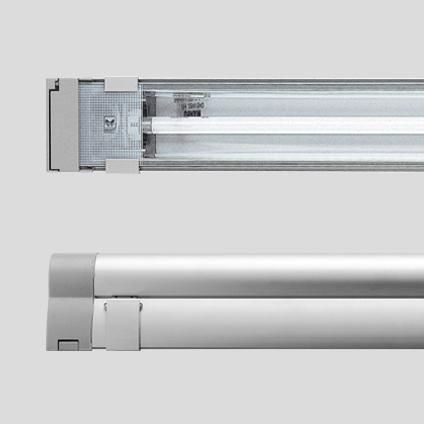

Spittler 05097911 Linear wall effect light 1x54W FDH T16 EVG symmetrical scattering optics

In stock
SKU: 210785
€372.38
Into a basketIn the basketGo

Overview

Wall and ceiling lights for indoor and outdoor use, consisting of: Lamp body made of anodized extruded aluminum profile Diffuser made of tempered safety screen-printed glass Head element made of painted die-cast aluminum Symmetrically shining reflector made of the purest aluminum, shiny and oxidized. Age-resistant silicone seal Cable closure M18x1.5 for cables with 8 - 10.5 mm The light is not suitable for through-wiring Aluminum clip with stainless steel spring, captive External screws made of stainless steel Glass locking hinges made of techopolymer Holder for ceiling or wall mounting made of painted die-cast aluminum The supports allow the ceiling light to be tilted by 12° Incl. vacuum protection valve

Further information:
Instructions for use as PDF

Property Value
Type of light: Glass light
Light source: Fluorescent lamp D=16 mm
Socket: G5
Suitable for number of bulbs: 1
Lamp wattage: 54 W
Operating device: EVG standard
Operating device included: Yes
Ignitor: not required
Ignitor included: No
Circuit: other
Dimmable: No
Suitable for emergency lighting: No
Nominal voltage: 220 - 240 V
Color temperature controllable: No
Color controllable (RGB): No
Direct/indirect components can be controlled separately: No
Direct/indirect components can be switched separately: No
Suitable for through-wiring: No
Housing material: Aluminium
Surface finish: Other
Housing colour: Aluminium
Suitable for strip light configuration: No
Suitable for pendant suspension: Yes
Suitable for wall mounting: Yes
Cover material: Clear glass
Cover color: without
Suitable for computer workstations: No
Perforated grid: No
Reflector: other
Perforated reflector: No
Light distribution: symmetrical
Light emission: direct
Glare limitation UGR longitudinal: 21.7
Glare limitation UGR transverse: 14.3
Length: 1300 mm
Width: 105 mm
Height/depth: 90 mm
With switch: No
With socket: No
Protection class: II
Protection type (IP): IP66
Impact resistance: IK07
Ball-proof: No
Fire protection D: No
Fire protection F: Yes
Fire protection FF: No
Furniture installation, fire protection M: No
Furniture installation, fire protection MM: No
Extreme temperature: 10 - 35 °C
With Light source: No

Characteristics

With switchNo
HAB5097911
ManufacturerSpittler
HAN05097911
GTIN8021944019073
Type of lampGlass lamp
Surface finishOther
Operating deviceElectronic ballast standard
Width105 mm
DimmableNo
Direct/indirect components can be controlled separatelyNo
VersionG5
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Suitable for wall mountingYes
Housing colorAluminum
Height/Depth90 mm
Lamp power54W
LampsFluorescent lamp D=16 mm
Light emissionDirect
Light distributionSymmetrical
Length1300 mm
With light sourceNo
Nominal voltage220 - 240V
Grid perforatedNo
ReflectorOther
Reflector perforatedNo
Impact resistanceIK07
Protection classII
Cover materialClear glass
Housing materialAluminum
