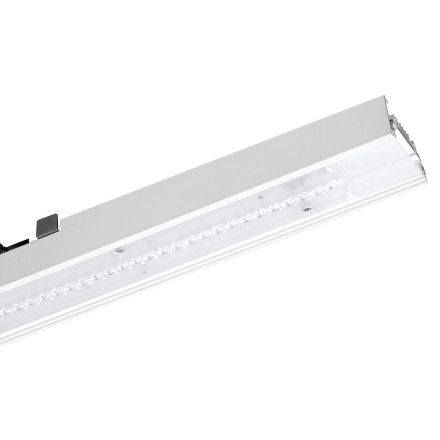

Spittler 14-01389 support rail system 4000K 139 W Power LED - with automatic power reduction asymmetric wide scattering optics

Spittler 14-01389 support rail system 4000K 139 W Power LED - with automatic power reduction asymmetric wide scattering optics

In stock

SKU: 314611

Price on request

€410.54

€0

Overview

LED indoor luminaire consisting of ceiling light and with RAIL for electrical connection, suitable for commercial and industrial applications, consisting of: / Luminaire housing made of drawn powder-coated aluminum (white) / Optics made of technopolymer lenses with increased light transmission / Asymmetrical optics / Light source consists of several LED modules / The luminaire is mounted on the RAIL without tools using two die-cast aluminum fastening clips with a quarter turn

Feature	Value
Suitable for wall mounting:	No
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	Yes
Suitable for recessed mounting:	No
Suitable for surface mounting:	No
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Lamp wattage:	77 W
Lamp wattage at Multiwatt:	not applicable
Operating device:	LED operating device current controlled
With operating device:	Yes
Type of dimming:	not dimmable
Circuit:	other
Suitable for emergency lighting:	Yes
Emergency lighting component integrated:	Yes
Nominal voltage:	220 - 240 V
Nominal current:	500 - 500 mA
Color temperature:	4000 - 4000 K
Housing material:	Aluminium
Surface finish:	matt
Housing colour:	white
Suitable for light strip configuration:	Yes
Cover material:	Transparent plastic
Suitable for computer workstations:	No
Grid finish:	without
Reflector:	other
Light distribution:	asymmetrical
Beam angle:	medium beam 20-40°
Light emission:	direct
Length:	1480 mm
Width:	61 mm
Height/depth:	70 mm
With motion detector:	No
With light sensor:	No
Protection class:	I
Protection type (IP):	IP20
Impact resistance:	IK03
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	-5 - 30 °C
Glow wire test according to IEC 60695-2-10:	without
With air slots:	No
Voltage type:	AC
Effective luminous flux:	9648 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB14-01389

Manufacturer

HAN14-01389

GTIN5414833080163

Surface finishFrosted

Execution of the gridWithout

Beam angleMedium beam 20-40°

Operating deviceLED control gear current controlled

Width61 mm

Color temperature4000 - 4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth70 mm

Lamp power77W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionAsymmetrical

Length1480 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 - 240V

Rated current500 - 500mA

ReflectorOther

Impact resistanceIK03

Protection classI

Voltage typeAC

Ambient temperature-5 - 30 °C

Cover materialPlastic transparent

Housing materialAluminum
