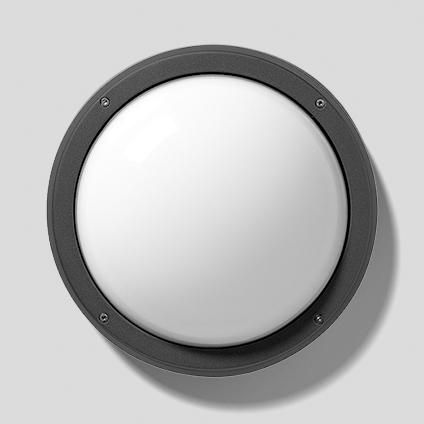

Spittler 302294 wall and ceiling light 1x21W FBT TC-TSE symmetrical diffuser optics

In stock
SKU: 211615
€115.55
Into a basketIn the basketGo

Overview

Wall and ceiling lights for indoor and outdoor use, comprising: housing, decorative ring and covers made of painted die-cast aluminum, diffuser made of pressed glass, frosted inside, parabolic reflector made of aluminum for incandescent lamp versions, decorative ring and covers are connected to the diffuser, EPDM gasket, luminaire is not suitable for through wiring, external screws made of stainless steel, max. load 400 W for incandescent lamps or 200 W for fluorescent lamps, adjustment is made via potentiometer, daylight sensor (5-1000 lux), duration sensor (10-300 s) and sensitivity sensor (20-100%), built-in high frequency sensor (HF) with continuous operation at a frequency of 5.8 Ghz+/- 75 Mhz, thanks to the protection module built into the sensor, several luminaires can be installed in the same room without mutual interference, maximum range up to 8 m

Property Value
Suitable for wall mounting: No
Suitable for pendant suspension: No
Suitable for ceiling mounting: No
Suitable for recessed mounting: No
Suitable for surface mounting: Yes
Light source: other
With light source: No
Socket: E27
Suitable for number of bulbs: 1
Lamp wattage: 21 W
Lamp wattage at Multiwatt: not applicable
Operating device: not required
With operating device: No
Type of dimming: not dimmable
Circuit: other
Suitable for Emergency light: No
Emergency light component integrated: No
Housing material: Aluminum
Surface finish: matt
Housing colour: anthracite
Suitable for light strip configuration: No
Cover material: Opal glass
Suitable for computer workstations: No
Grid finish: without
Reflector: other
Light distribution: symmetrical
Beam angle: free-beaming
Light emission: direct
Height/depth: 119 mm
Outer diameter: 293 mm
With motion detector: Yes
With light sensor: Yes
Protection class: I
Protection type (IP): IP66
Impact resistance: IK07
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with roof': No
Glow wire test according to IEC 60695-2-10: without
With air slots: No
Voltage type: AC
Light color: other

Characteristics

HAB302294
ManufacturerSpittler
HAN302294
GTIN8018367931242
Surface finishFrosted
Execution of the gridWithout
Beam angleFree-radiating
Outer diameter293 mm
Operating deviceNot required
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorAnthracite
Height/Depth119 mm
Lamp power21 W
LampsOther
Light emissionDirect
Light colorOther
Light distributionSymmetrical
With operating deviceNo
With motion detectorYes
With light sourceNo
With light sensorYes
With air slotsNo
ReflectorOther
Impact resistanceIK07
Protection classI
Voltage typeAC
Cover materialGlass opal
Housing materialAluminum
