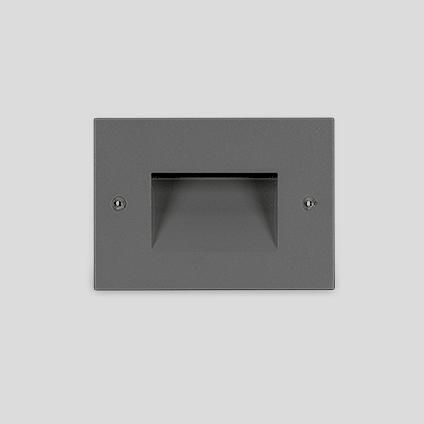

Spittler 304112 LED recessed wall light 3000K 1x5W Power LED asymmetric

Spittler 304112 LED recessed wall light 3000K 1x5W Power LED asymmetric

In stock

SKU: 210358

Price on request

€86.07

€0

Overview

Recessed luminaire, suitable for installation in solid walls, for general lighting for indoor and outdoor areas, consisting of: Housing made of die-cast aluminum with polyester powder coating, diffuser made of flat glass, satined inside, EPDM seal, external screws made of stainless steel, 503 including standard recessed pot, polyester powder coating, consisting of 13 different layers, protects against UV radiation, the luminaire is suitable for through-wiring

Property	Value
Suitable for wall mounting:	No
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	No
Suitable for recessed mounting:	Yes
Suitable for surface mounting:	No
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Lamp wattage:	5 W
Lamp wattage for multiwatt:	not applicable
Operating device:	LED control gear current-controlled
With control gear:	Yes
Type of dimming:	not dimmable
Circuit:	other
Suitable for emergency lighting:	No
Emergency lighting component integrated:	No
Nominal voltage:	220 - 240 V
Color temperature:	3000 - 3000 K
Material of Housing:	Aluminum
Surface finish:	matt
Housing colour:	anthracite
Suitable for strip light configuration:	No
Cover material:	opal glass
Suitable for computer workstations:	No
Grid finish:	high gloss
Reflector:	other
Light distribution:	asymmetrical
Beam angle:	medium beam 20-40°
Light emission:	direct
Length:	105 mm
Width:	75 mm
Height/depth:	48.7 mm
Installation height/depth:	48.7 mm
With motion detector:	No
With light sensor:	No
Protection class:	I
Protection type (IP):	IP65
Impact resistance:	IK08
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	-20 - 45 °C
Glow wire test according to IEC 60695-2-10:	without
With air slots:	No
Voltage type:	AC
Effective luminous flux:	22 lm
Light color:	white

Characteristics

HAB304112

Manufacturer

HAN304112

GTIN8018367630244

Surface finishFrosted

Execution of the gridHigh gloss

Beam angleMedium beam 20-40°

Operating deviceLED control gear current controlled

Width75 mm

Installation height/depth48.7 mm

Color temperature3000 - 3000K

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorAnthracite

Height/Depth48.7 mm

Lamp power5W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionAsymmetrical

Length105 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 - 240V

ReflectorOther

Impact resistanceIK08

Protection classI

Voltage typeAC

Ambient temperature-20 - 45 °C

Cover materialGlass opal

Housing materialAluminum
