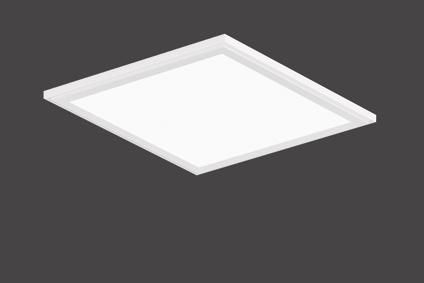

Spittler 8300591233300 LED recessed light 3000K 27W converter PMMA

In stock
SKU: 128502
€195.82
Into a basketIn the basketGo

Overview

Recessed luminaire FL 300 with high-performance LED, luminaire output 27W, advanced surface luminaire creates an unprecedented symbiosis of general and workplace lighting, particularly filigree and innovative design, characterized by clear and square forms, a harmonious integration into the ceiling and surroundings is created, particularly elegant and architecturally supportive, designed for a wide range of application and planning variations, luminaire frame made of extruded aluminum profile, scratch-resistant surface finish thanks to high-quality powder coating according to Opale light optics with LED side light feed, integrated highly transmitting light guide, direct beam, homogeneous luminance distribution over the entire light emission surface (LED side light technology), diffuse lighting effect creates a uniform lighting level, uniform light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces,

Property Value
Suitable for Wall mounting: No
Suitable for pendant suspension: No
Suitable for ceiling mounting: Yes
Suitable for recessed mounting: Yes
Suitable for surface mounting: No
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for Number of bulbs: 1
Lamp wattage: 24 W
Lamp wattage at Multiwatt: not applicable
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: not dimmable
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Nominal voltage: 220 - 240 V
Nominal current: 113 - 123 mA
Color temperature: 3000 - 3000 K
Housing material: Aluminum
Surface finish: Other
Housing color: White
Suitable for strip light configuration: No
Cover material: Opal plastic
Suitable for computer workstations: No
Design of the grid: without
Reflector: without
Light distribution: symmetrical
Beam angle: extremely wide beam >80°
Light emission: direct
Length: 296 mm
Width: 296 mm
Height/depth: 12 mm
Installation length: 203 mm
Installation width: 203 mm
Installation height/depth: 65 mm
With motion detector: No
With light sensor: No
Protection class: I
Protection class (IP): IP20
Impact resistance: IK06
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with roof': No
Ambient temperature: 10 - 35 °C
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
System power: 27 W
With air slots: No
Voltage type: AC
Effective luminous flux: 2250 lm
Light color: white
Color rendering index CRI: 80-89

Characteristics

ManufacturerSpittler
HAN8300591233300
GTIN4052075133936
Surface finishOther
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width296 mm
Installation width203 mm
Installation height/depth65 mm
Installation length203 mm
Color temperature3000 - 3000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorWhite
Height/Depth12 mm
Lamp power24W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length296 mm
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 - 240V
Rated current113 - 123mA
ReflectorWithout
Impact resistanceIK06
Protection classI
Voltage typeAC
System performance27W
Ambient temperature10 - 35 °C
Cover materialPlastic opal
Housing materialAluminum
