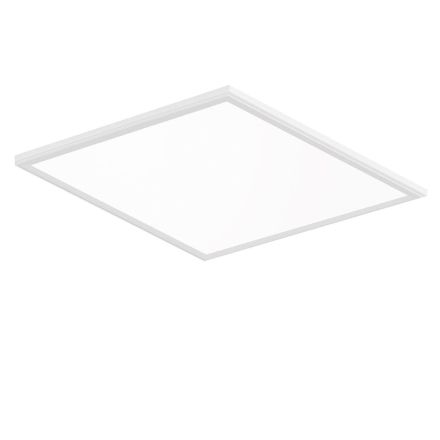

Spittler 8600691403400 LED surface-mounted luminaire 4000K 45W converter PMMA

In stock
SKU: 315105
€295.72
Into a basketIn the basketGo

Overview

FL 600 surface-mounted luminaire with high-performance LED, luminaire output 45W, particularly filigree and innovative design, characterized by clear and square shapes, a harmonious integration into the ceiling and surroundings is created, particularly elegant and architecturally supportive, designed for a wide range of application and planning variations, luminaire frame made of extruded aluminum profile, scratch-resistant surface finish thanks to high-quality powder coating according to Opale light optics with LED side light feed, integrated highly transmitting light guide, direct beam with corona for ceiling illumination, homogeneous luminance distribution over the entire light emission surface (LED side light technology), floating appearance of the luminaire in the room thanks to ceiling illumination (corona), diffuse lighting effect creates a uniform lighting level, uniform light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces,

Property Value
Suitable for wall mounting: Yes
Suitable for pendant suspension: No
Suitable for ceiling mounting: Yes
Suitable for recessed mounting: No
Suitable for surface mounting: Yes
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of bulbs: 1
Lamp wattage: 41 W
Lamp wattage at Multiwatt: not applicable
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: DALI
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Nominal voltage: 220 - 240 V
Nominal current: 188 - 205 mA
Color temperature: 4000 - 4000 K
Housing material: Aluminum
Surface finish: Other
Housing color: White
Suitable for strip light configuration: No
Cover material: Opal plastic
Suitable for computer workstations: No
Design of the grid: without
Reflector: without
Light distribution: symmetrical
Beam angle: extremely wide beam >80°
Light emission: direct/indirect
Length: 596 mm
Width: 596 mm
Height/Depth: 52 mm
With motion detector: No
With light sensor: No
Protection class: I
Protection type (IP): IP20
Impact resistance: IK05
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with roof': No
Ambient temperature: 10 - 35 °C
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
System power: 45 W
With air slots: No
Voltage type: AC/DC
Effective luminous flux: 5240 lm
Light color: white
Color rendering index CRI: 80-89

Characteristics

HAB8,60069E+12
ManufacturerSpittler
HAN8600691403400
GTIN4052075164336
Surface finishOther
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width596 mm
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth52 mm
Lamp power41 W
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributionSymmetrical
Length596 mm
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 - 240V
Rated current188 - 205mA
ReflectorWithout
Impact resistanceIK05
Protection classI
Voltage typeAC/DC
System performance45W
Ambient temperature10 - 35 °C
Cover materialPlastic opal
Housing materialAluminum
