Spittler 8629661406430 LED ceiling light SL629 31W 4000K DALI RAL9006s d

Spittler 8629661406430 LED ceiling light SL629 31W 4000K DALI RAL9006s d

In stock

SKU: 442226

Price on request

€361.27

€0

Overview

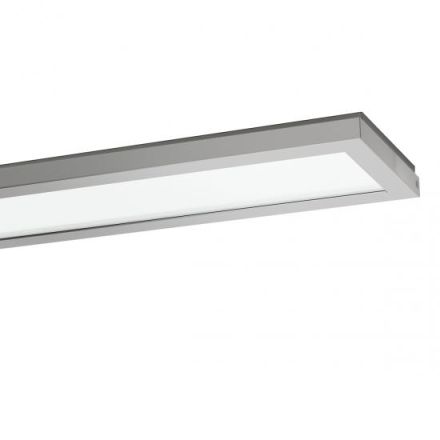

SL629 surface-mounted luminaire with high-performance LED, luminaire output 31W, universally applicable linear luminaire for the office area, clear design language and understated appearance support harmonious integration into the existing architecture, particularly suitable for large-scale office and educational facilities due to easy maintenance, great technical variability and balanced price-performance ratio, luminaire housing made of sheet steel, light engine can be replaced using a slide-in mechanism, scratch-resistant surface finish thanks to high-quality powder coating according to prismatic light optics for efficient light scattering, glare minimization and high uniformity, integrated highly transmitting light guide, direct beam, homogeneous luminance distribution over the entire light emission surface (LED sidelight technology), BAP-suitable according to DIN EN 12464-1,

Property	Value
System performance:	31 W
Luminous flux:	4000 lm
Number of LM:	1
Length:	1544 mm
Width:	273 mm
Height/depth:	50 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	steel
Color temperature:	4000 K
Impact resistance:	IK05
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	yes
Light source:	LED not replaceable
Temperature:	10 to 35 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Cover material:	plastic, structured
Light distributor:	other
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear, current-controlled
Suitable for Recessed installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	yes
Rated service life:	99800 h
Protection class (NEMA):	1
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	28 W
Luminaire luminous efficacy:	129 lm/W
Power factor:	0.89
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.5 mm²
Surface protection housing:	powder-coated
Rated current:	129 to 141 mA
Replaceable Operating device:	yes
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance with an average service life of 35,000 hours at an ambient temperature of 25 °C:	79 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C:	70 %
Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: Service life 75,000 hours at 25 °C ambient temp.:	55 %
Failure rate for average service life of 35,000 hours at 25 °C ambient temp. (tq):	0.8 %
Failure rate for average service life of 50,000 hours at 25 °C ambient temp. (tq):	1 %
Failure rate for average service life of 75,000 hours at 25 °C ambient temp. (tq):	1.2 %
Max. Number of luminaires circuit breaker B16:	200
Max. Number of lights circuit breaker C16:	13
Integrated emergency power supply:	no
Flicker value Pst LM:	0.4
Stroboscopic effect value SVM:	0.7
Constant luminous flux control:	no
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	19
Adjustable color temperature:	no
Adjustable luminous flux:	no
Adjustable beam angle:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Number of LM1

Stroboscopic effect value SVM0.7

Flicker value Pst LM0.4

Manufacturer

HAN8629661406430

GTIN4052075184945

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceYes

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)19

Width273 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonYes

Dimming programmableYes

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power28W

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth50 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.89

Conductor cross-section1.5 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy129lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux4000lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.70 %

Light distributorOther

Light distributionSymmetrical

Length1544 mm

Max. number of luminaires Circuit breaker B16200

Max. number of luminaires Circuit breaker C1613

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current129 to 141 mA

Emergency power supply integratedNo

Surface protection housingPowder coated

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK05

IP protection)IP20

Protection class (NEMA)1

Protection classI

Voltage typeAC/DC

System performance31 W

Temperature10 to 35 °C

Cover materialPlastic structured

Housing materialSteel
