Catalog

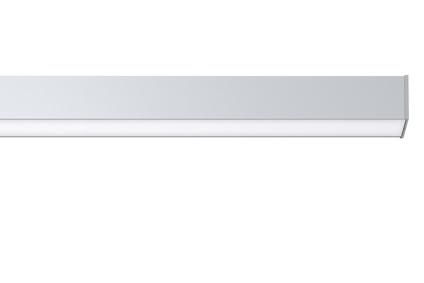

Spittler 8764691403470 LED surface-mounted light 4000K 42W converter PMMA

In stock
SKU: 212141
€259.29
Into a basketIn the basketGo

Overview

SL 764 surface-mounted luminaire with high-performance LED, luminaire output 42W, ultimate extension of the profile luminaire series in an innovative design, the FLAT cover supports sophisticated and modern interior design with its delicate design, highly variable and modular luminaire system with various extension options for maximum design freedom, light strip version available on request, luminaire housing made of extruded aluminum profile, surface head pieces made of die-cast aluminum, elegant light line thanks to profile-flush opal cover made of PMMA, direct beam, homogeneous luminance distribution over the entire light emission surface (LED back technology), diffuse lighting effect creates a uniform lighting level, uniform light scattering supports the visual perception of horizontal and vertical room and ceiling surfaces,

Property Value
Suitable for wall mounting: No
Suitable for Pendant suspension: No
Suitable for ceiling mounting: Yes
Suitable for recessed mounting: No
Suitable for surface mounting: Yes
Light source: LED not replaceable
With light source: Yes
Socket: other
Suitable for number of light sources: 1
Lamp wattage: 38 W
Lamp power at Multiwatt: not applicable
Operating device: LED operating device, current-controlled
With operating device: Yes
Type of dimming: not dimmable
Circuit: other
Suitable for emergency lighting: No
Emergency lighting component integrated: No
Nominal voltage: 220 - 240 V
Rated current: 175 - 191 mA
Color temperature: 4000 - 4000 K
Housing material: Aluminum
Surface finish: Other
Housing color: Silver
Suitable for strip light configuration: No
Cover material: Opal plastic
Suitable for computer workstations: No
Design of the grid: without
Light distribution: symmetrical
Beam angle: extremely wide beam >80°
Light emission: direct
Length: 1132 mm
Width: 40 mm
Height/depth: 60 mm
With Motion detector: No
With light sensor: No
Protection class: I
Protection type (IP): IP30
Impact resistance: IK05
Fire protection 'D': No
Installation in insulated ceilings, fire protection 'F with roof': No
Ambient temperature: 10 - 35 °C
Glow wire test according to IEC 60695-2-10: 650 °C - 30 s
System power: 42 W
With air slots: No
Voltage type: AC
Effective luminous flux: 3830 lm
Light color: white
Color rendering index CRI: 80-89

Characteristics

HAB8,76469E+12
ManufacturerSpittler
HAN8764691403470
GTIN4052075148725
Surface finishOther
Execution of the gridWithout
Operating deviceLED control gear current controlled
Width40 mm
Color temperature4000 - 4000K
Color rendering index CRI80-89
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingNo
Housing colorSilver
Height/Depth60 mm
Lamp power38W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributionSymmetrical
Length1132 mm
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 - 240V
Rated current175 - 191mA
Impact resistanceIK05
Protection classI
Voltage typeAC
System performance42W
Ambient temperature10 - 35 °C
Cover materialPlastic opal
Housing materialAluminum
