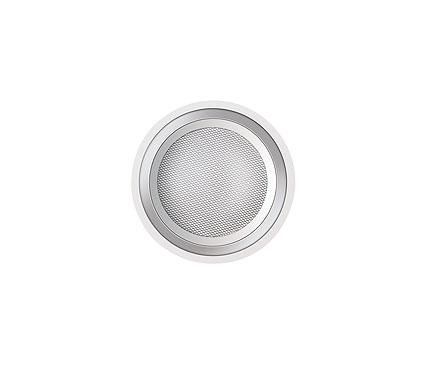

Spittler 8105561143411 LED recessed downlight 4000K 15W converter with emergency light 1h microprism

In stock
SKU: 129378
€318.75
Into a basketIn the basketGo

Overview

Recessed downlight DL 105 with high-performance LED in COB technology, luminaire output 15W, round, filigree mini downlight for universal lighting tasks, logical continuation of the classic product in innovative LED technology, the downlight integrates discreetly into almost any ceiling image and has a particularly architecturally supporting effect, is a universal design tool thanks to its clear design, designed for a wide range of application and planning variations, luminaire housing made of galvanized sheet steel, mounting ring made of die-cast aluminum, ceiling fastening via spring technology for ceiling thicknesses from 1 to 25mm, scratch-resistant surface finish thanks to high-quality powder coating after reflector made of vacuum-vaporized, high-gloss pure aluminum (Al 99.98%), with recessed microprism disc, direct beam, homogeneous luminance distribution over the entire light emission surface, directed light creates an atmospheric room atmosphere, high-performance LED with passive cooling /

Further information:
Instructions for use as PDF

Product data (energy label) as PDF

Property Value
Installation type: Installation
Light source: LED
Suitable for number of light sources: 1
Lamp wattage: 13 W
Operating device: EVG standard
Operating device included: Yes
Ignitor: not required
Ignitor included: No
Circuit: other
Dimmable: No
Emergency lighting: built-in
Nominal voltage: 220 - 240 V
Color temperature controllable: No
Color controllable (RGB): No
Direct/indirect components separately controllable: No
Suitable for through-wiring: Yes
Electrical connection with plug-in system: No
Housing material: steel
Surface finish: other
Housing color: white
Cover material: plastic structured/prismatic
Suitable for computer workstations: No
Reflector: high-gloss
Reflector perforated: No
Light distribution: symmetrical
Light emission: direct
Glare limitation UGR lengthwise: 23.2
Glare limitation UGR crosswise: 23.2
Suitable for accommodating lighting accessories: No
Outer diameter: 108 mm
Installation depth: 100 mm
Installation diameter: 98 mm
Protection class: I
Protection class (IP): IP44
Impact resistance: IK07
Ball-proof: No
Fire protection F: Yes
Fire protection FF: No
Fire protection D: No
Installation in insulated ceilings, fire protection F with roof: No
Furniture installation, fire protection M: No
Furniture installation, fire protection MM: No
Extreme temperature: 10 - 35 °C
Glow wire test according to IEC 695-2-1: 960 °C - 5 sec.
With light source: Yes

Characteristics

ManufacturerSpittler
HAN8105561143411
GTIN4052075095999
Surface finishOther
Outer diameter108 mm
Operating deviceElectronic ballast standard
DimmableNo
Direct/indirect components can be controlled separatelyNo
Installation diameter98 mm
Installation depth100 mm
Electrical connection with plug-in systemNo
Suitable for number of lamps1
Housing colorWhite
Lamp power13 W
LampsLED
Light emissionDirect
Light distributionSymmetrical
With light sourceYes
Mounting typeInstallation
Nominal voltage220 - 240V
ReflectorHigh gloss
Reflector perforatedNo
Impact resistanceIK07
Protection classI
Cover materialPlastic structured/prismatic
Housing materialSteel
