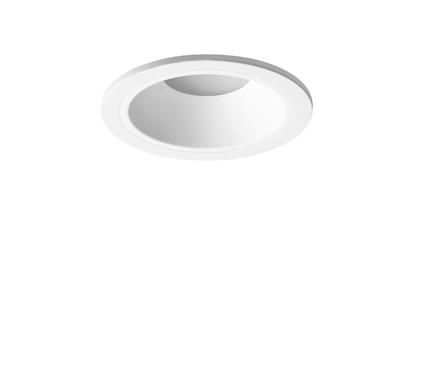

Spittler 810711363002 LED recessed downlight 3000K 14W DALI - emergency light 3h diffuse light optics

Spittler 810711363002 LED recessed downlight 3000K 14W DALI - emergency light 3h diffuse light optics

In stock

SKU: 212245

Price on request

€374.20

€0

Overview

Recessed downlight DL 100 superbasic LED with high-performance LED, luminaire output 14W, light-tight luminaire housing made of die-cast aluminum, reflector cone made of ABS injection molding in white with light-tight connection to LED module, scratch-resistant surface finish thanks to high-quality powder coating for direct beam, diffuse light optics for optimal scattering and a homogeneously illuminated light exit surface, with recessed diffuse light optics, low installation height thanks to particularly flat design, high-quality thermal management thanks to die-cast aluminum heat sink with FAST (Flexible Air Stream Technology),

Property	Value
Suitable for wall mounting:	No
Suitable for pendant suspension:	No
Suitable for ceiling mounting:	Yes
Suitable for recessed mounting:	Yes
Suitable for surface mounting:	No
Adjustability:	not adjustable
Light source:	LED not replaceable
With light source:	Yes
Socket:	other
Suitable for number of light sources:	1
Suitable for Lamp power:	12 - 12 W
Lamp power at Multiwatt:	not applicable
Operating device:	LED operating device, current-controlled
With operating device:	Yes
Type of dimming:	DALI
Integrated emergency lighting component:	Yes
With light sensor:	No
With motion detector:	No
Nominal voltage:	220 - 240 V
Nominal current:	58 - 64 mA
System power:	14 W
Color temperature:	3000 - 3000 K
Housing material:	steel
Surface finish:	matt
Housing color:	white
Cover material:	opal plastic
Suitable for computer workstations:	No
Design of the grid:	without
Reflector:	white
Light distribution:	symmetrical
Light emission:	direct
Beam angle:	extremely wide beam >80°
Outer diameter:	108 mm
Installation depth:	95 mm
Installation diameter:	98 mm
Protection class:	I
Protection type (IP):	IP20
Impact resistance:	IK07
Fire protection 'D':	No
Installation in insulated ceilings, fire protection 'F with roof':	No
Ambient temperature:	10 - 35 °C
Glow wire test according to IEC 60695-2-10:	650 °C - 30 s
Voltage type:	AC/DC
Effective luminous flux:	1060 lm
Light color:	white
Color rendering index CRI:	80-89

Characteristics

HAB8,10711E+11

Manufacturer

HAN810711363002

GTIN4052075155945

Surface finishFrosted

Execution of the gridWithout

Outer diameter108 mm

Operating deviceLED control gear current controlled

Installation diameter98 mm

Installation depth95 mm

Color temperature3000 - 3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for lamp power12 - 12W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 - 240V

Rated current58 - 64mA

ReflectorWhite

Impact resistanceIK07

Protection classI

Voltage typeAC/DC

System performance14W

Ambient temperature10 - 35 °C

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialSteel
